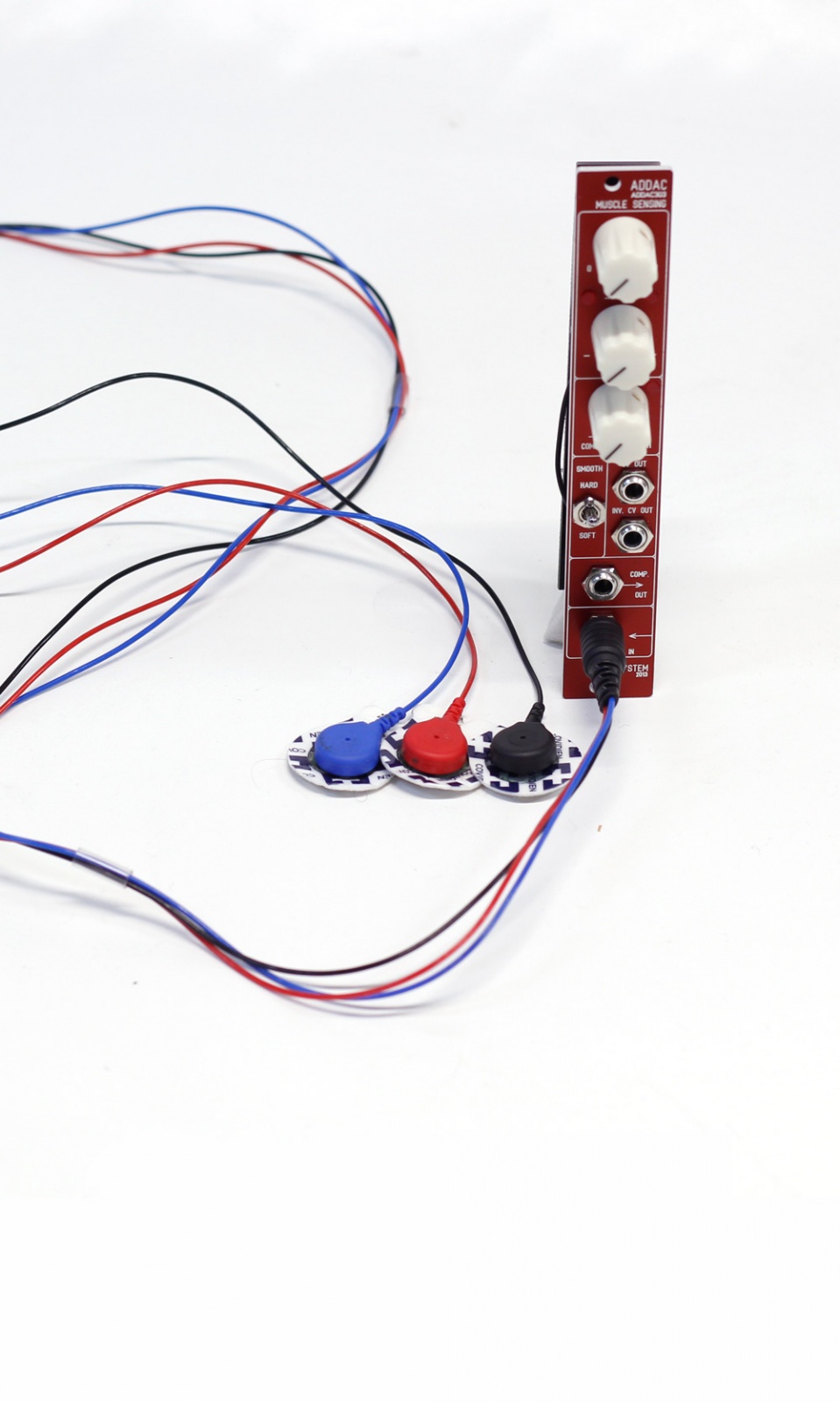

This module introduces a totally new interaction principle for the Eurorack format, using electrodes to sense body muscles tension.
You can stick them to your arm and clench your fist, to your leg and tap your tempo, to your band bass player or drummer... you name it.
Gain knob adjusts the output's voltage range (±10V)
Offset adjusts initial range position (±10V)
Smooth switch allows hard and soft smoothing of the raw sensor output.
Positive and inverted CV Outputs
Comparator Gate out with Threshold knob
Module ships with electrodes.
Pads are reusable and replaceable.
Electrodes Jack: 25€
10 Pad pack: 6€
. Width: 4 HP
. Depth: 4 cm
. Max current: 60mA
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector
Note: All specifications and features are subject to change without previous notice.
HD Video, Fullscreen Recommended!
Here's a lovely piece by Bertolt Meyer using 2 of our ADDAC303
And a great in depth video from Bertolt Meyer sharing some tips and explaining his methodology when using the 303's
In case you're wondering: Sure! We can get you a custom coloured front panel for the ADDAC303.
It has an additional cost and takes 4 to 6 weeks to be ready.
At the moment we have standard issue stock for either Black or Red panels for this module
A custom colour panel can be done in either Green, Blue, White, Silver Gray, Yellowed Silver, and Dark or Light Bronze.
Print colour varies between Black, White, or Red, Blue and Green. We recommend lighter-tone print for darker panels, and vice-versa.
Please note: we don’t stock custom coloured panels. For every custom order we need to make a single panel order from our panel provider. This explains the panel price and lead time.
