Description

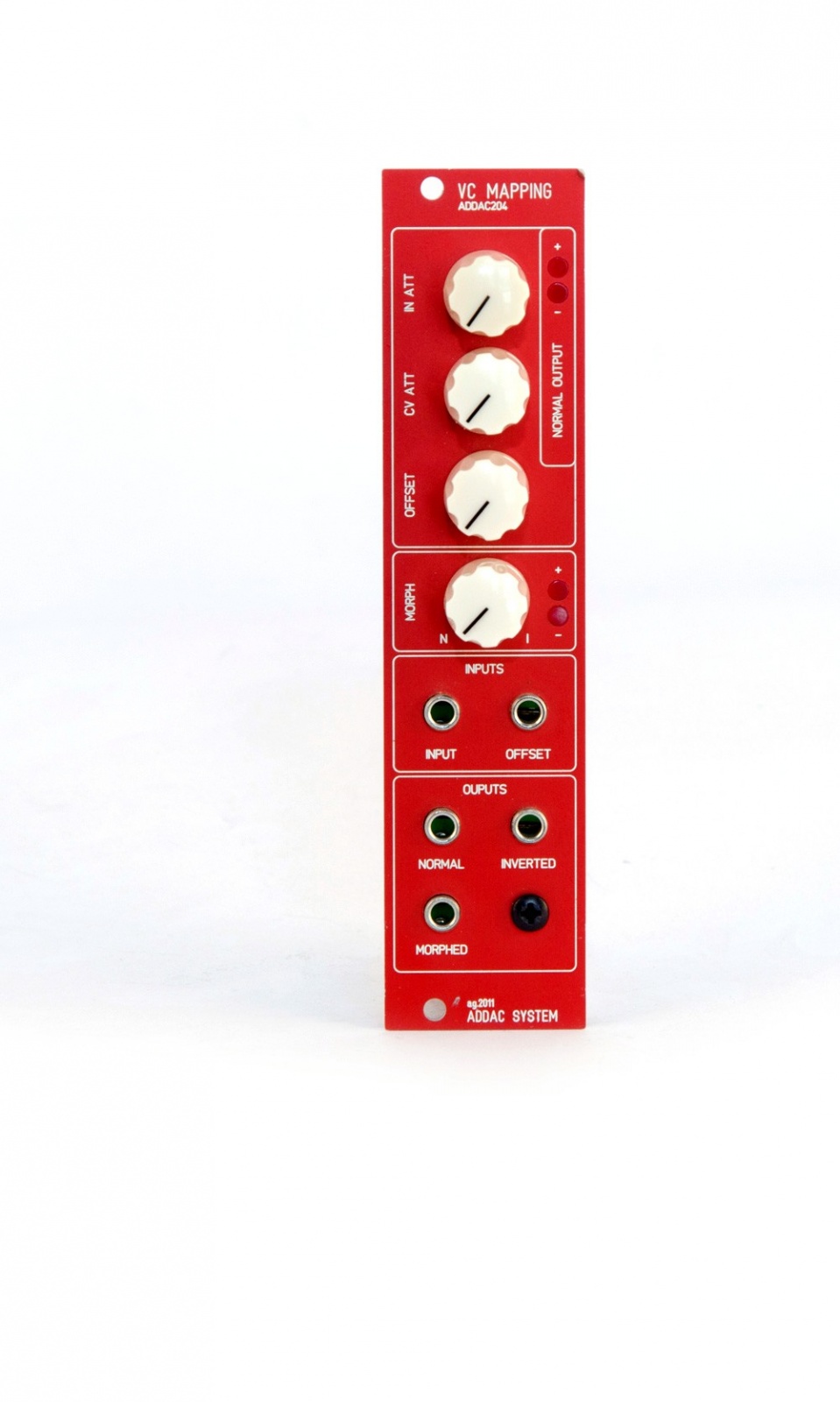

With the VC mapping module you'll be able to scale your voltage and also control its offset via CV.
This module provides two outputs for normal and inverted output voltages. A third output morphs between the normal and inverted outputs.
Features
. Input, with attenuator knob
. Offset CV input, with attenuator knob
. 3 outputs: normal, inverted, morphed
. Morph knob
Note: All specifications and features are subject to change without previous notice.
Specs
Mechanical:
. Format: Eurorack
. Width: 6 HP
. Depth: 2 cm
Control Voltage I/O:
. CV inputs: ± 10v
. CV outputs: ± 10v
Electrical:
. Compatible with +-12v and +-15v power supplies
. Max current: 40mA
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector
Note: All specifications and features are subject to change without previous notice.
Media
HD Video, Fullscreen Recommended!
Custom Panel
In case you're wondering: Sure! We can get you a custom coloured front panel for the ADDAC204.
It has an additional cost and takes 4 to 6 weeks to be ready.
At the moment the ADDAC204 standard panel colour is Red.
A custom colour panel can be done in either Black, Green, Blue, White, Silver Gray, Yellowed Silver, and Dark or Light Bronze.
Print colour varies between Black, White, or Red, Yellow, Blue and Green. We recommend lighter-tone print for darker panels, and vice-versa.
Please note: we don’t stock custom coloured panels. For every custom order we need to make a single panel order from our panel provider. This explains the panel price and lead time.
