Description

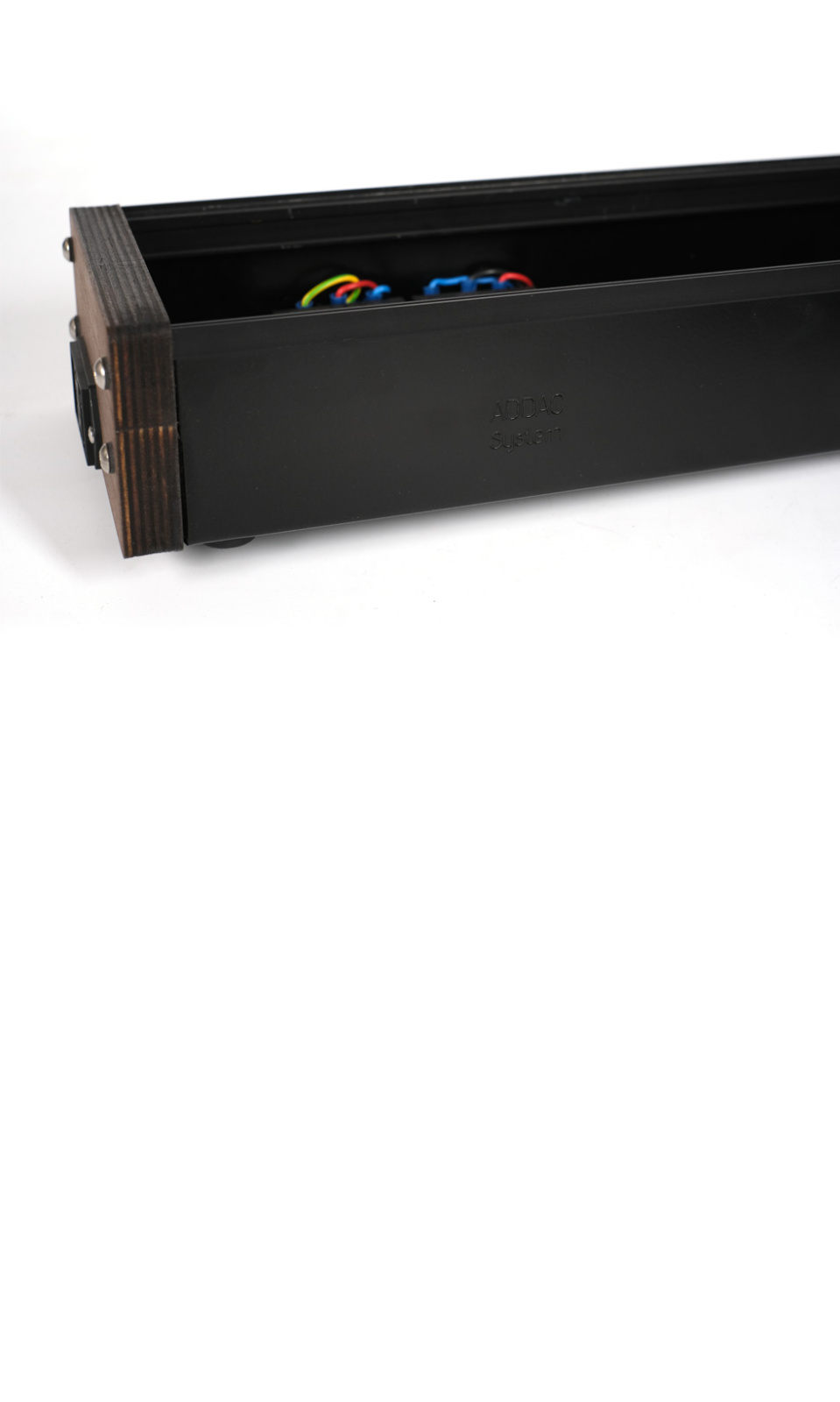

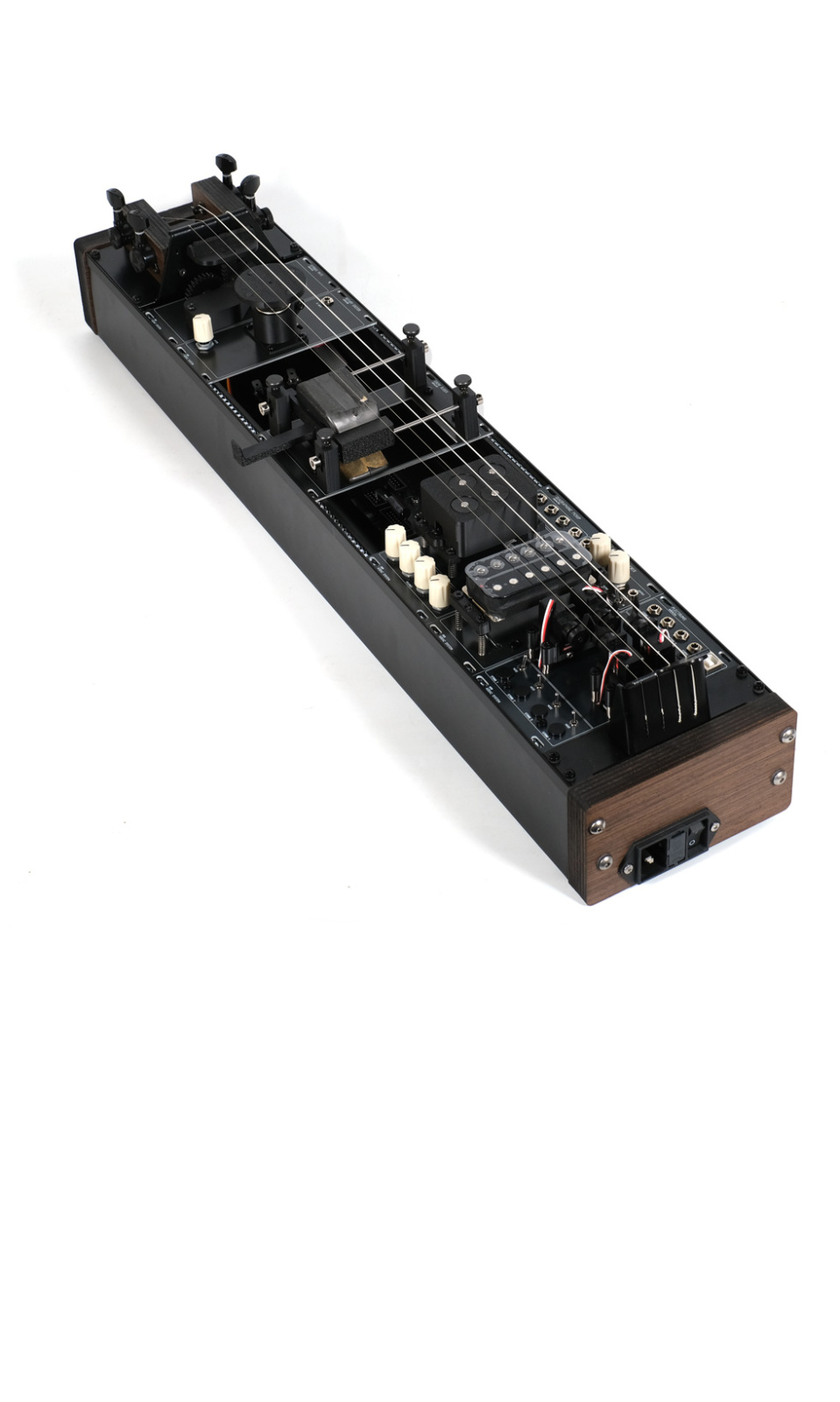

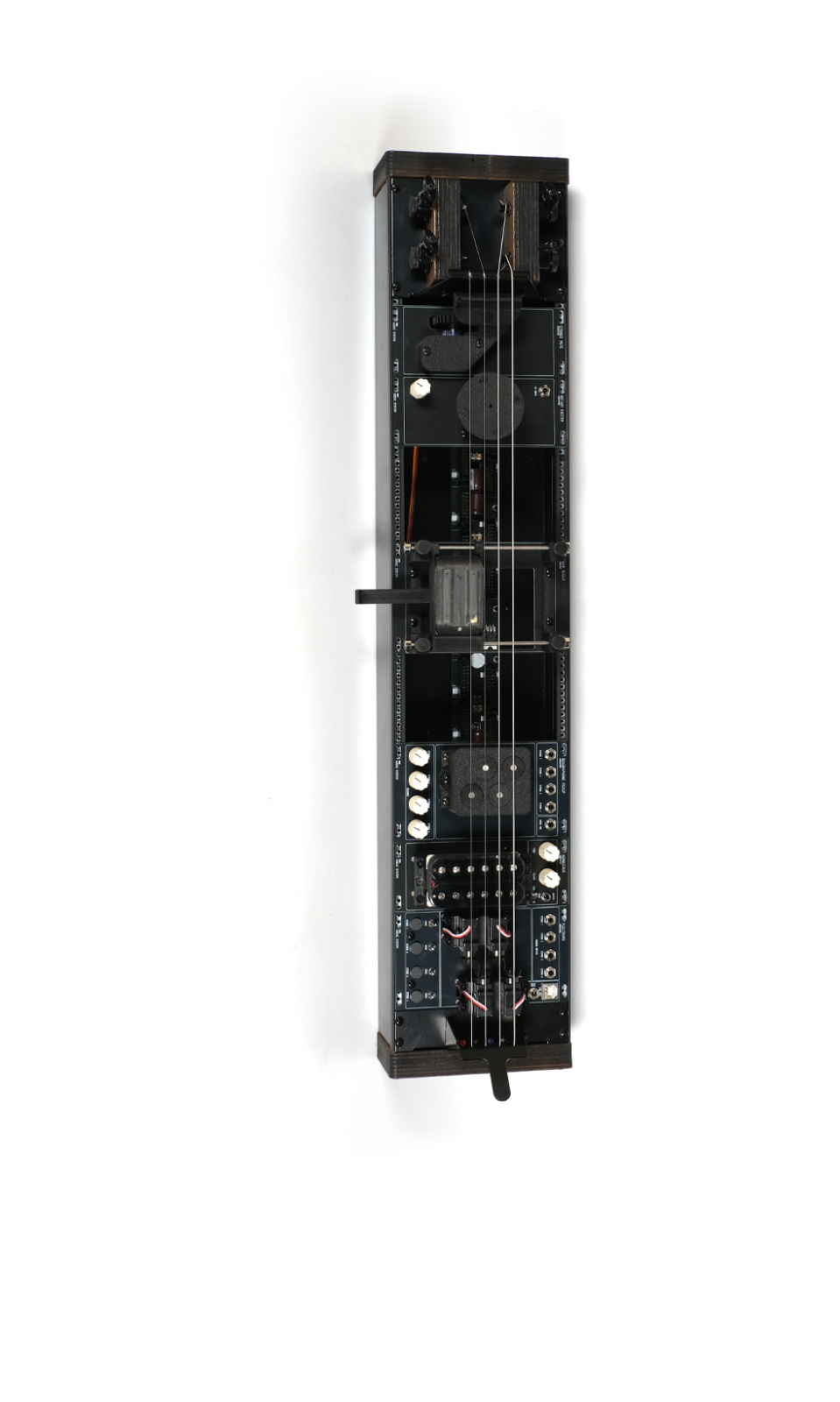

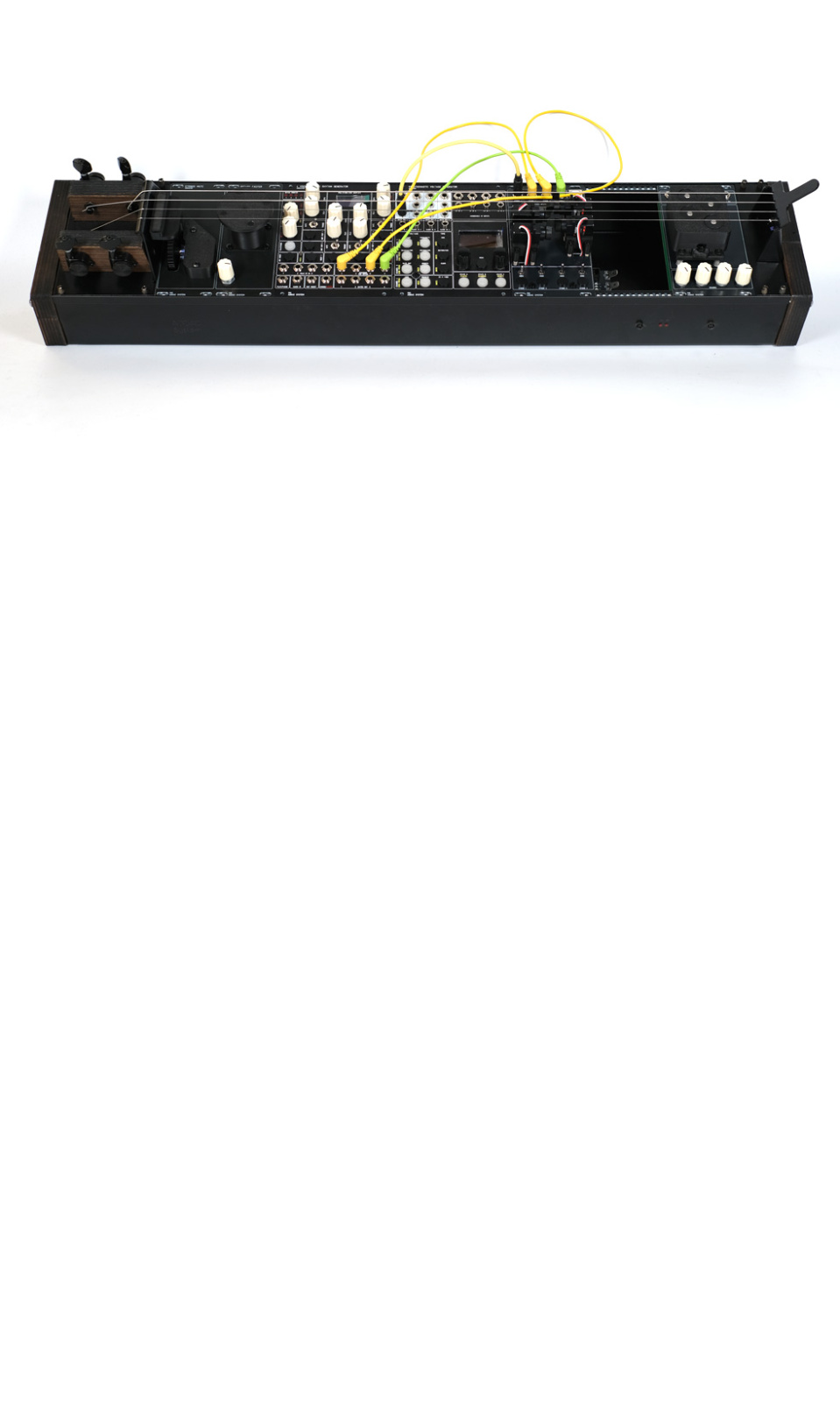

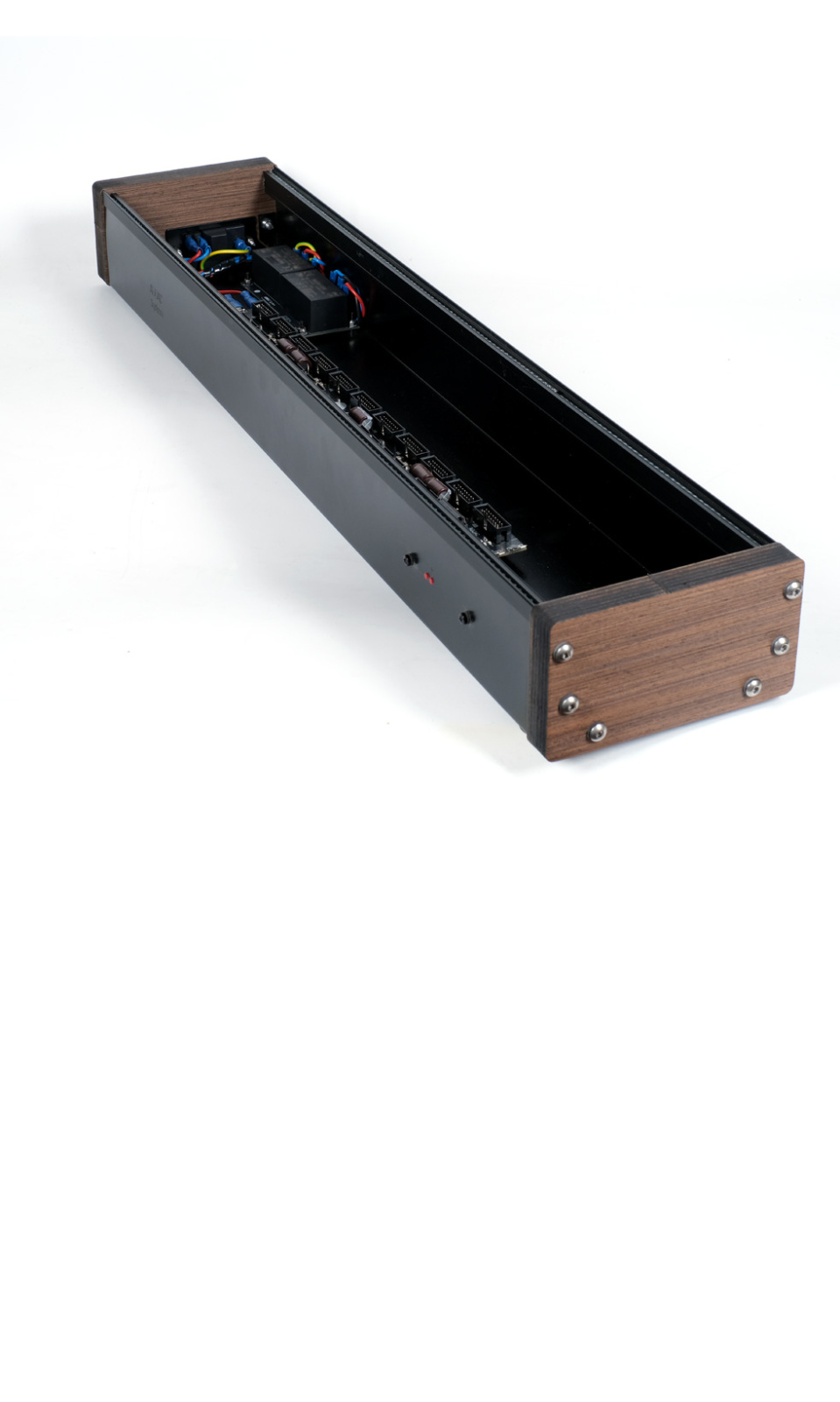

We made this frame specifically for our ADDAC12X String modules.
Width: 122HP
Power Specifications:

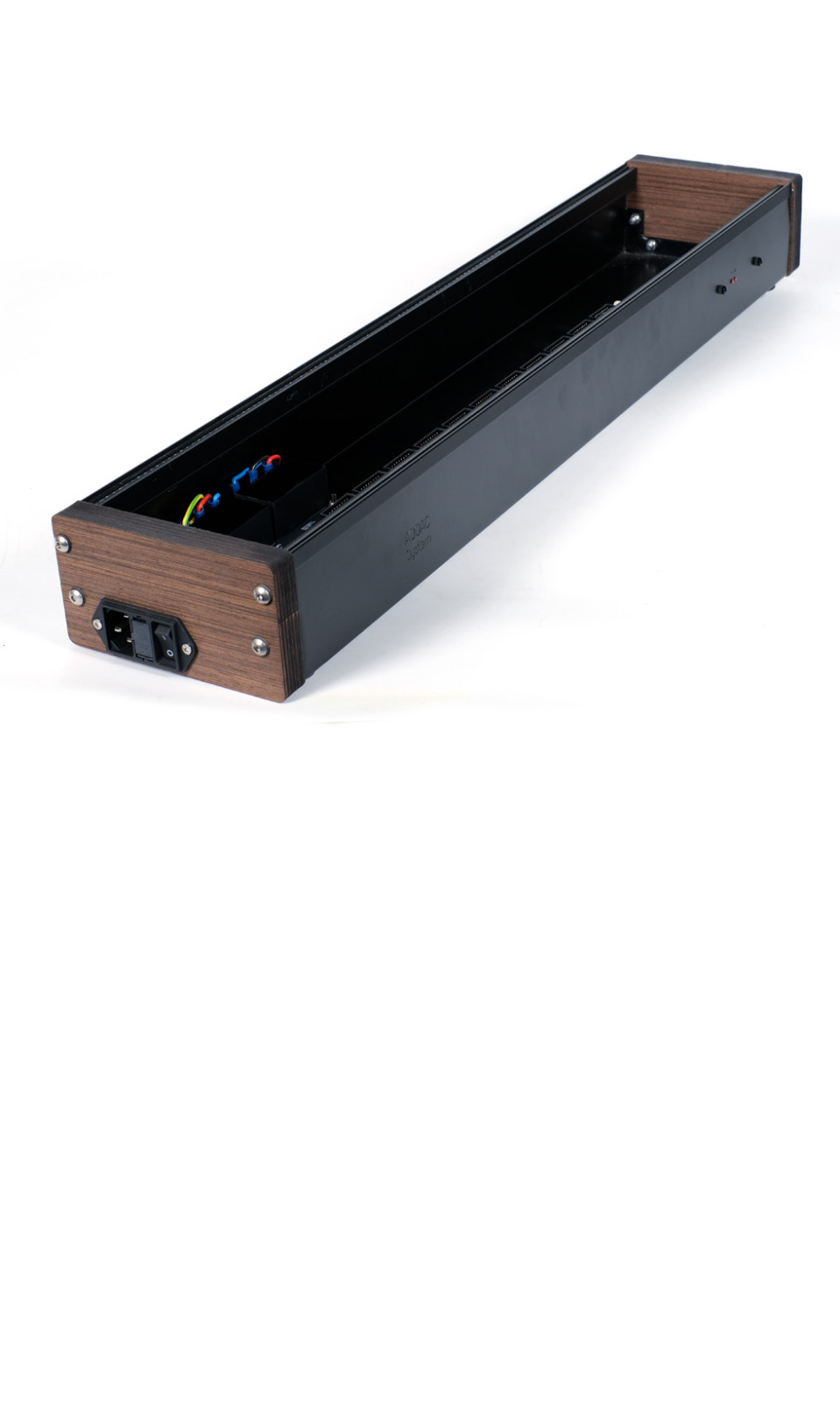

- AC Input: 90v to 240v
- Output: ±12V
- Current: 1.5A on the +12V, 1.5A on the -12V

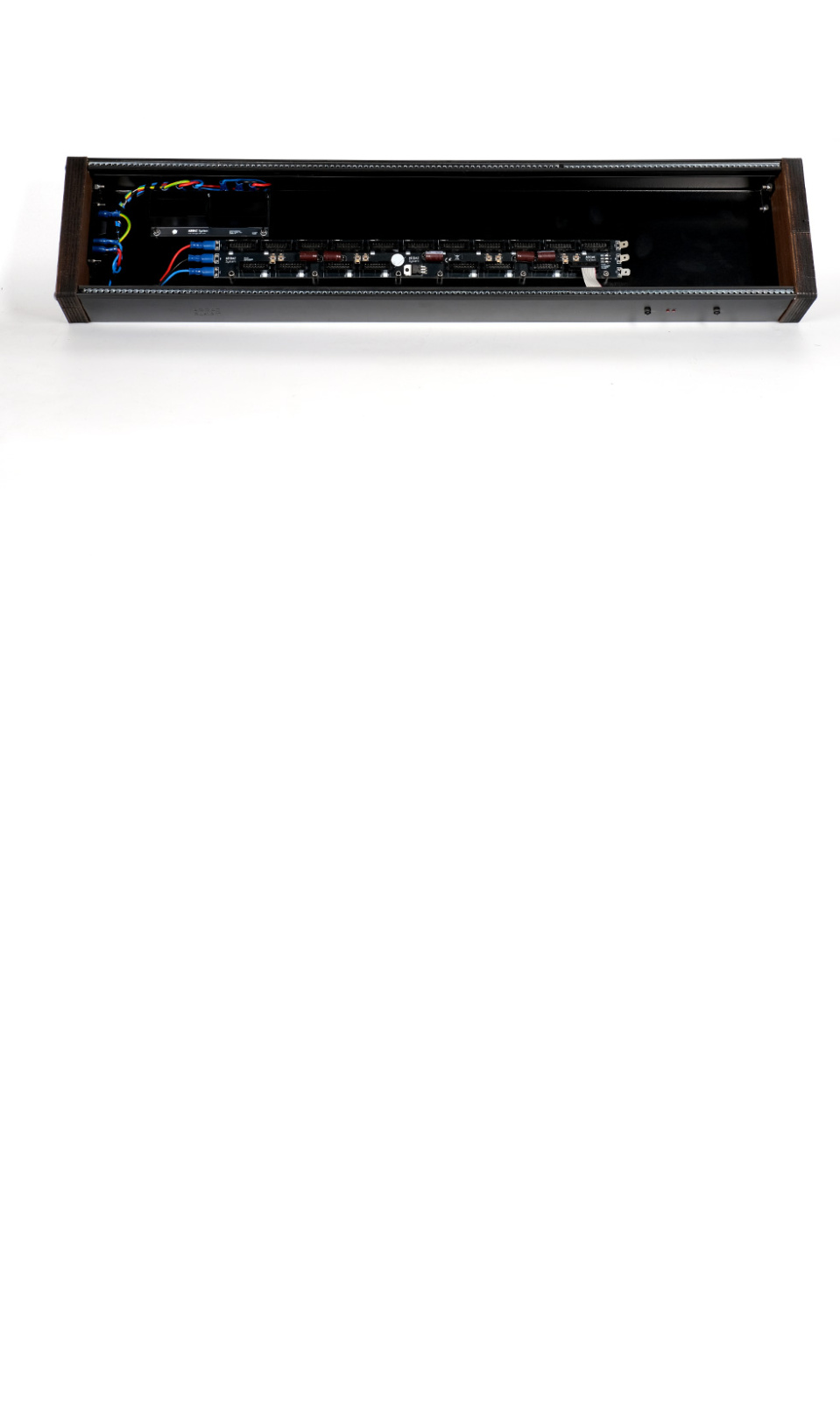

- Busboards with 19 connectors
- Our busboards already provide +5V (Draws from +12V, 500mA max. per busboard)
PSU festures shutdown protection for:
Over Current - when maximum current is exceeded (for when a module ribbon cable is reversed)
Over Heating - if the AC Brick is over heating
Over Voltage - if the voltage changes above or below the expected output
If one of these issues happens then the PSU will enter an intermittent ON/OFF state until the issue is corrected.
These safety protections will prevent damage to your PSU and consequentially to the modules as well.
