ADDAC122

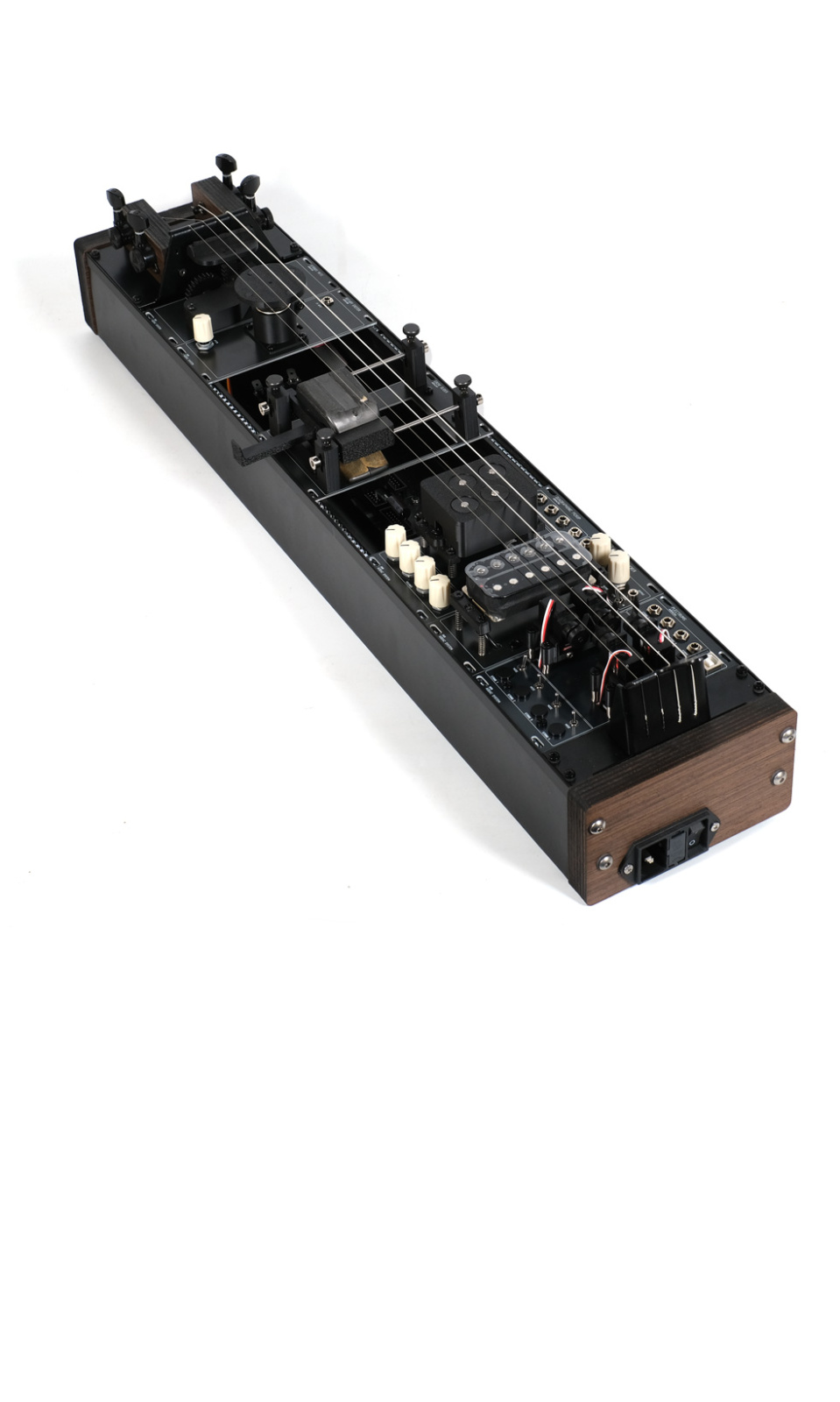

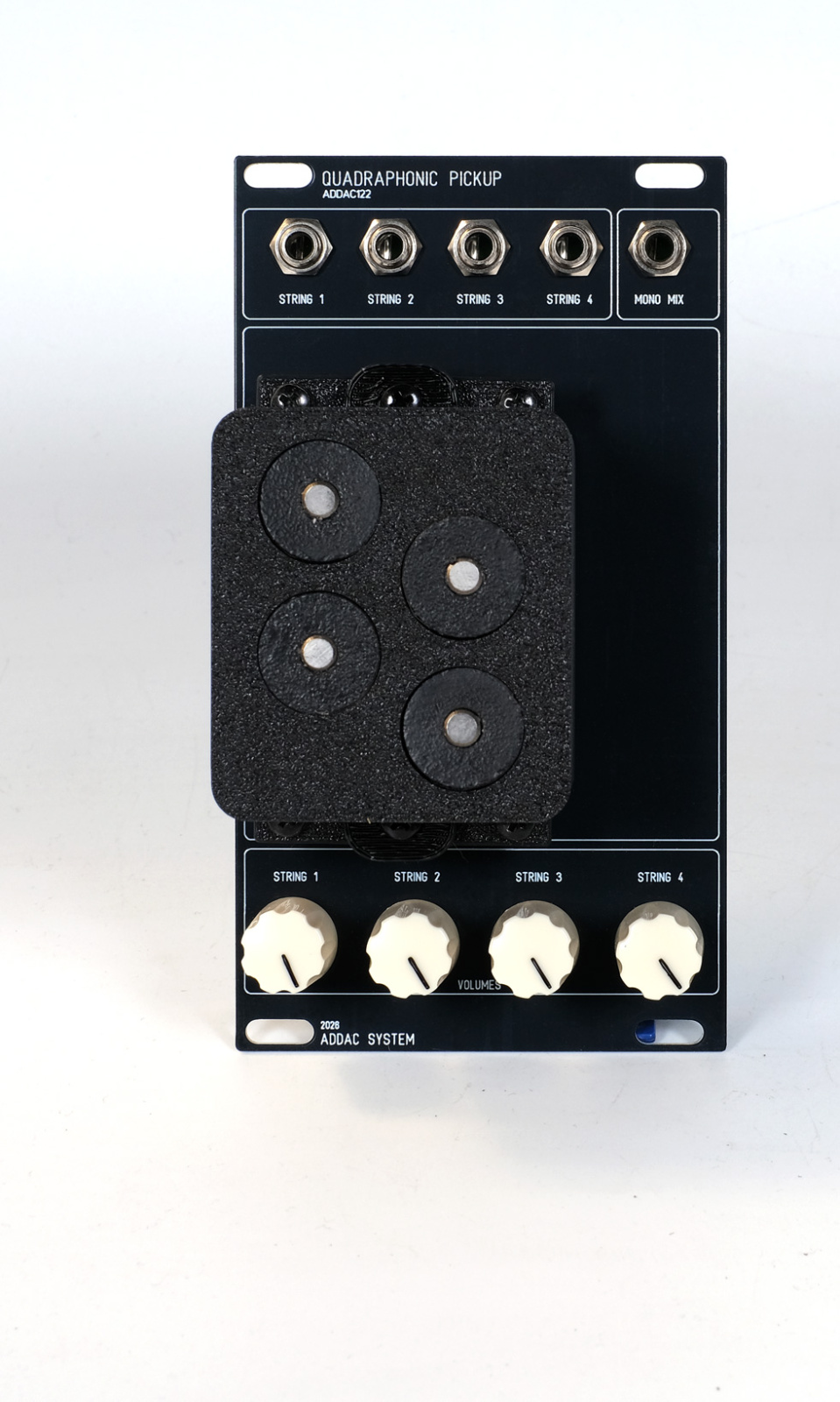

This is our Quadraphonic pickup which allows each string to be independently captured. While not common Hexaphonic guitar pickups were developed in the 80’s to allow guitar synthesizers to pickup each string independently allowing for more precise detection instead of decoding all strings from a mono output.
One can look at it like four independent pickups each with their own pre-amplifier, independent Volume control and output jack.

A Mono Mix output (post volumes) is also available.
All outputs are synth level.

All coils are hand winded by us, they’re stacked humbuckers with Alnico 5 slugs,
Each is winded to 20.000 turns using 44AWG polyurethane wire measuring aprox. 7.4k Ohms.

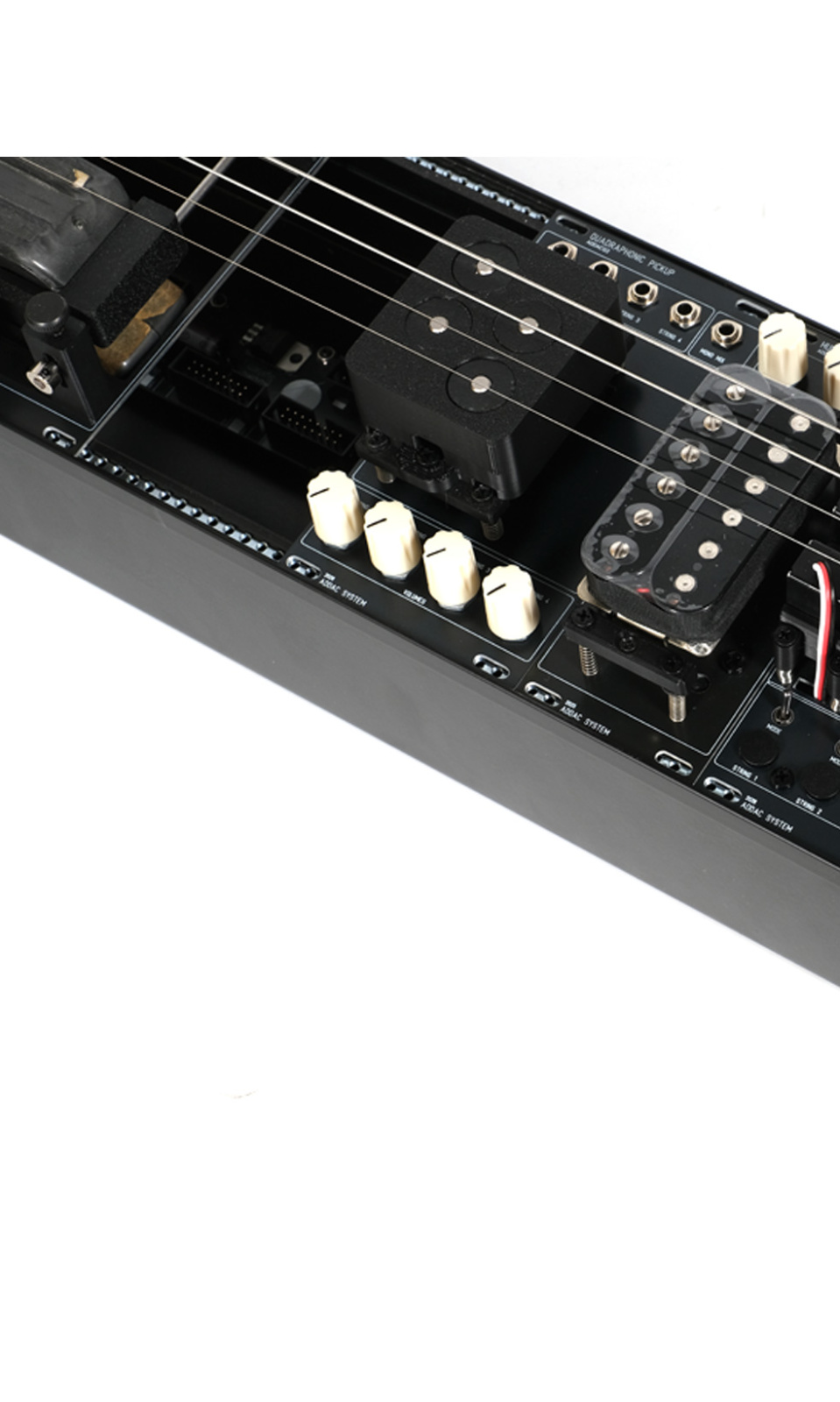

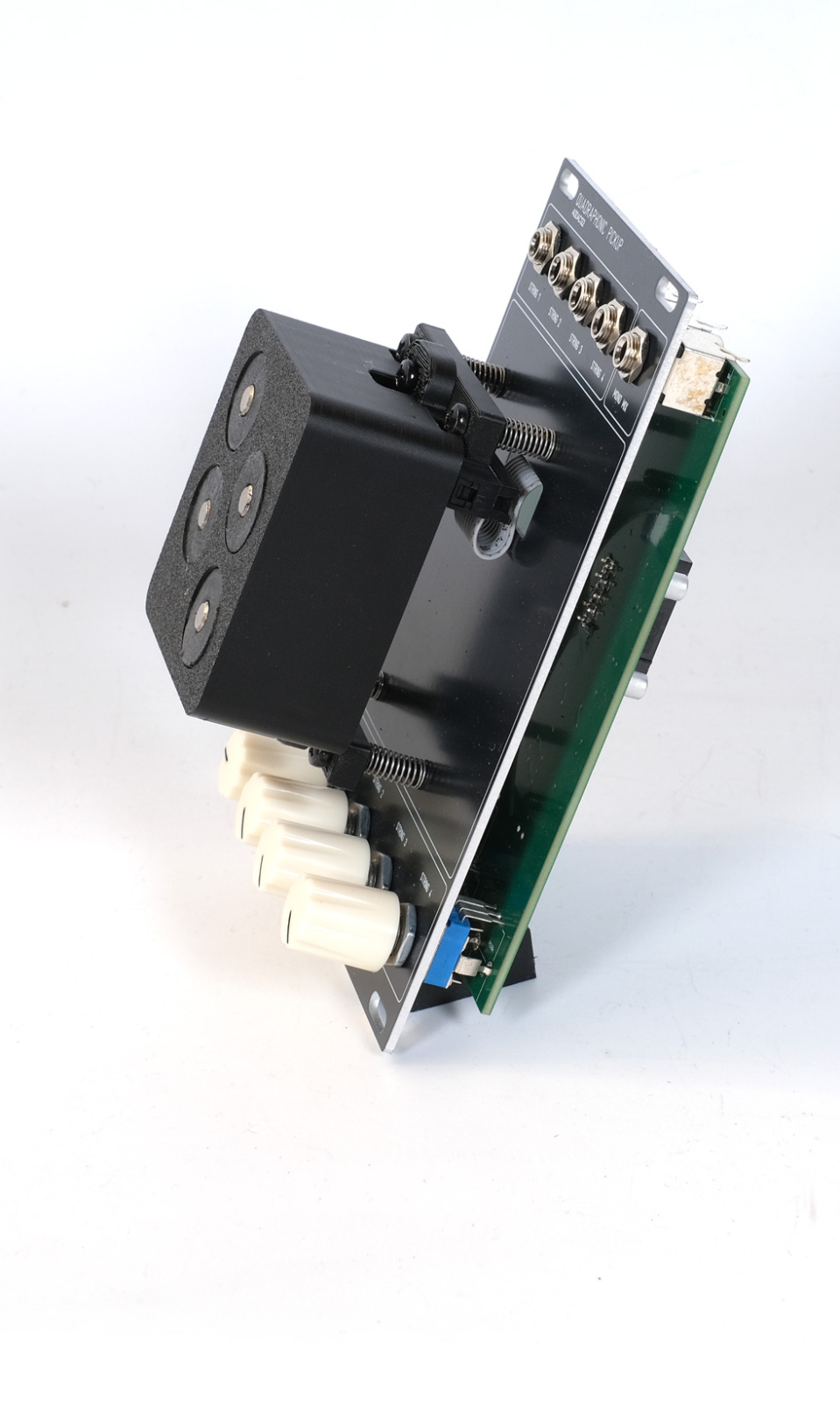

The height of the pickup can be adjusted using the mounting screws.

Specs:
14HP
80mA on +12V
60mA on -12V
Depth: 3cm
