ADDAC128M

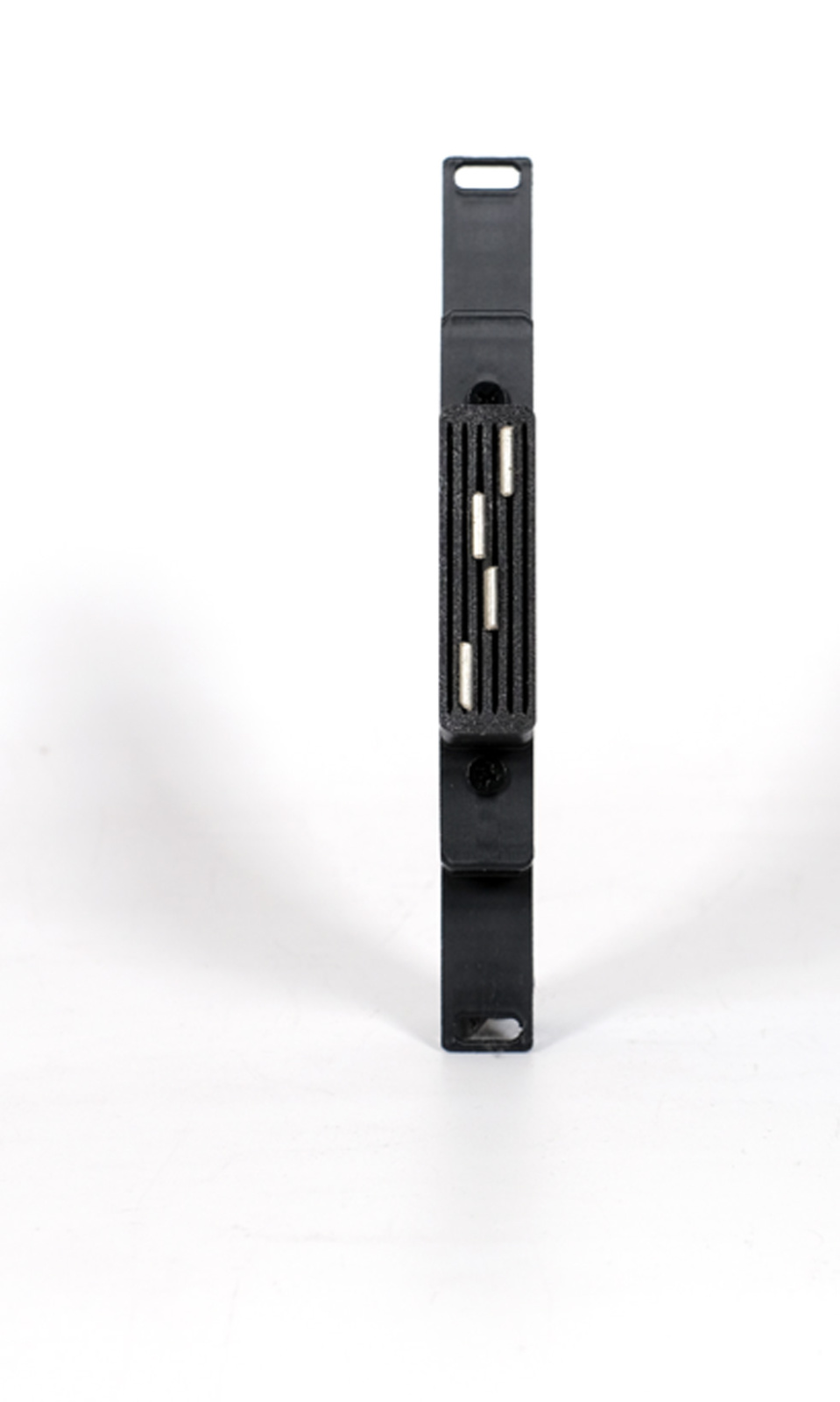

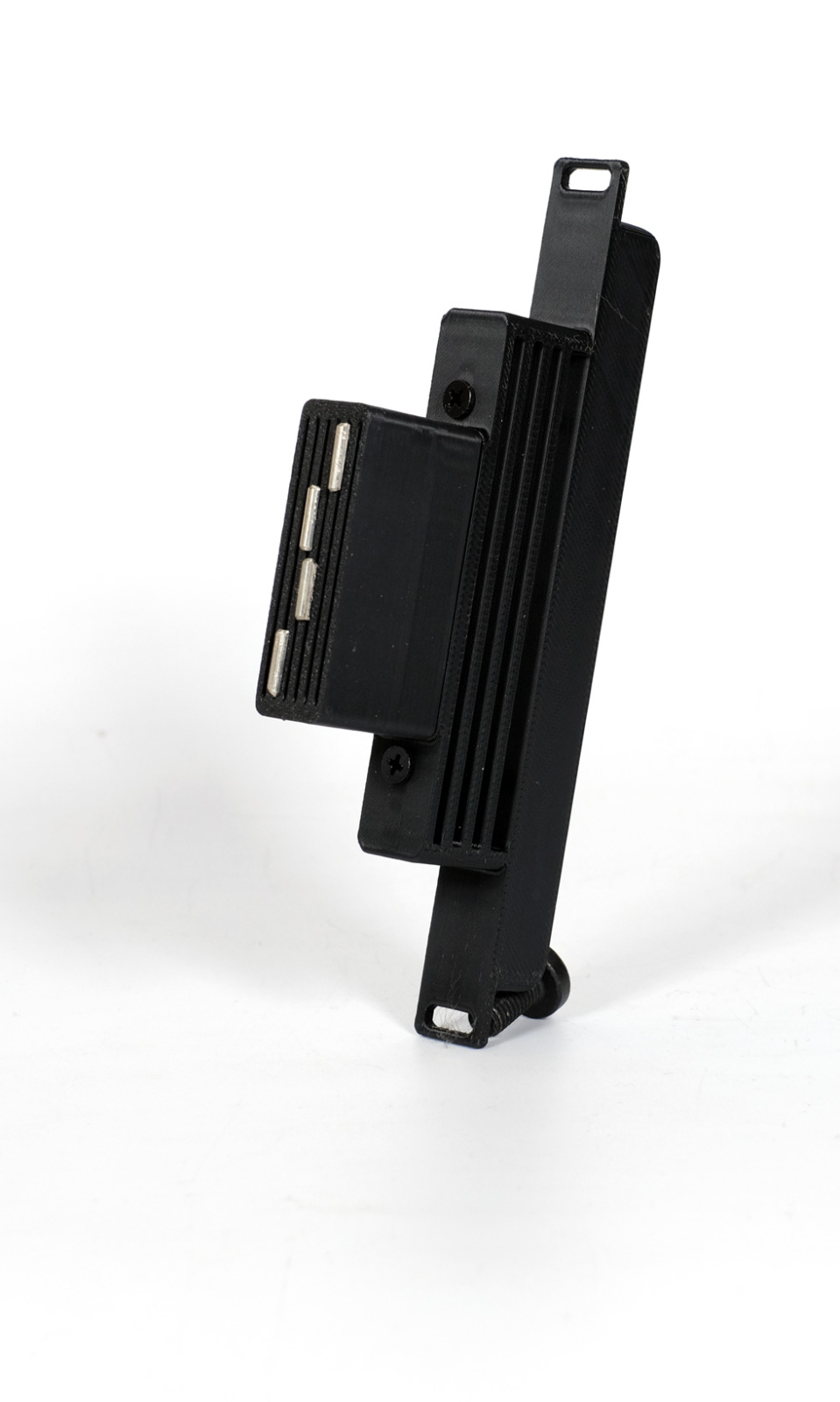

This module creates a freted position anywhere on the frame, each module has four separate frets for each string which can be placed in the sloted grooves spaced out at 2mm intervals. The placement of each fret needs to be pressed into the slot and requires a tuner to get it to the right position for the intended pitch.

If using more than one module the overall height of each module is calibrated using the two screws on the front, for non buzzing efficiency each module needs to be slightly lower then the previous one. Once you set their order and heights the first time keep the same order for next the next uses as the plastic will slightly deform and may not recover from it’s first setup. We provide labeling circles for this purpose.

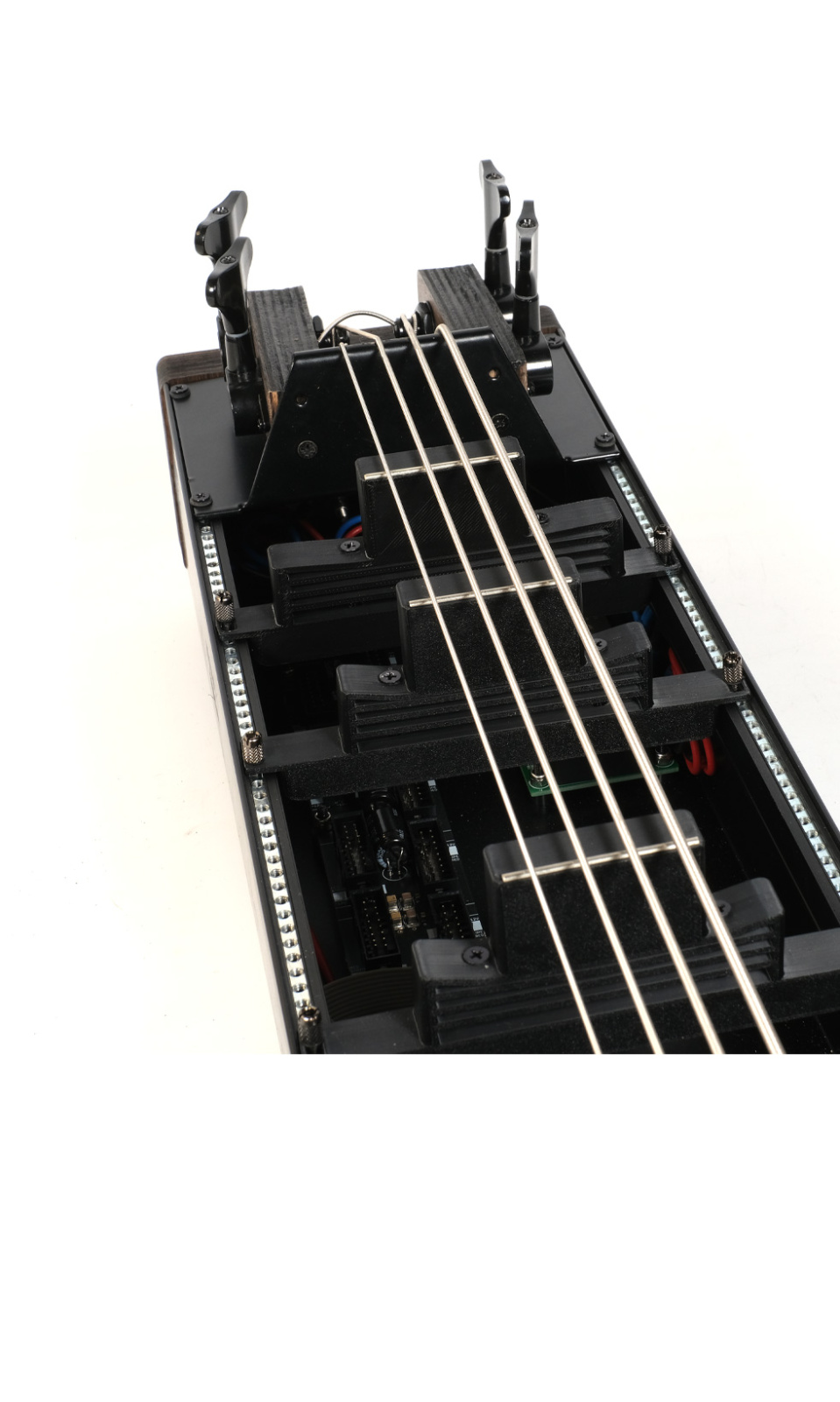

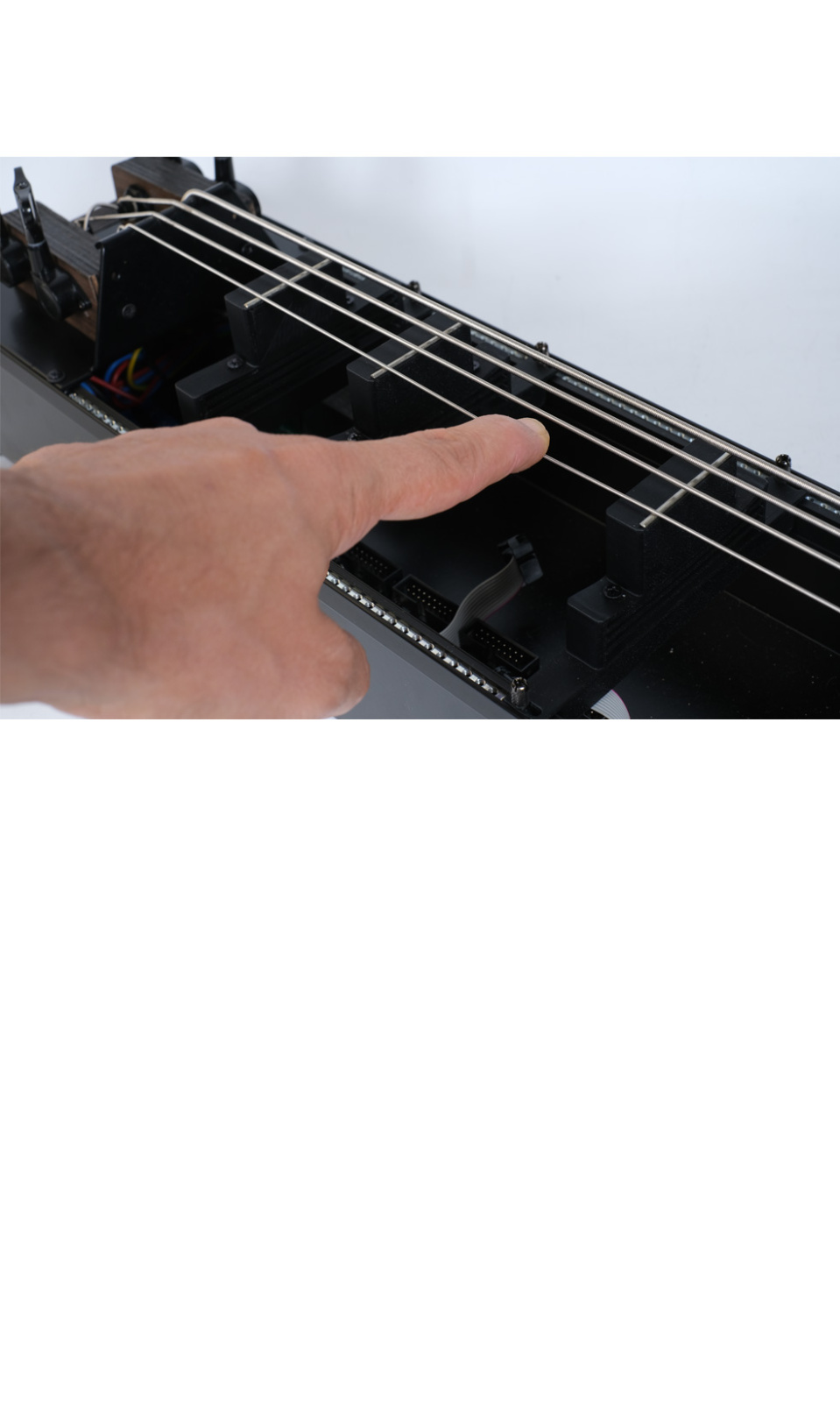

The photos of the frets in use show the ADDAC128 Frets instead of the 128M.

Tech specs:
3HP
passive module

Product Safety Information

Eurorack Module

Important Safety Information
This Eurorack module is designed for use within standard Eurorack synthesizer systems and is intended for adult users familiar with modular synthesis and electronic equipment.

Please read this safety guide before installation or use.

General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could pose a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.

Installation and Use
• Mounting: Secure the module properly in the Eurorack case using the provided screws.
• Power Connection: Verify the polarity of the power cable before connecting to avoid damage to the module or power supply. Use only the included or manufacturer-recommended power cable.
• Operational Use: Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Maintenance and Handling
• Inspection: Regularly check for loose connections or signs of wear.
• Cleaning: Disconnect the module from power before cleaning. Use a dry or lightly damp cloth; avoid using solvents or water directly on the module.
• Repairs: Do not attempt to repair or modify the module yourself. Contact the manufacturer for support.

Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.

Liability Disclaimer
• The manufacturer is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
