ADDAC129

ADDAC129 expands our Four String Series into a physical resonator. A Transducer (vibration speaker) slides into the bridge end lever and transports any sound through the strings which is then captured by the pickup.

The transducer is powered by a small mono amplifier, its input accepts any input (synth/line).

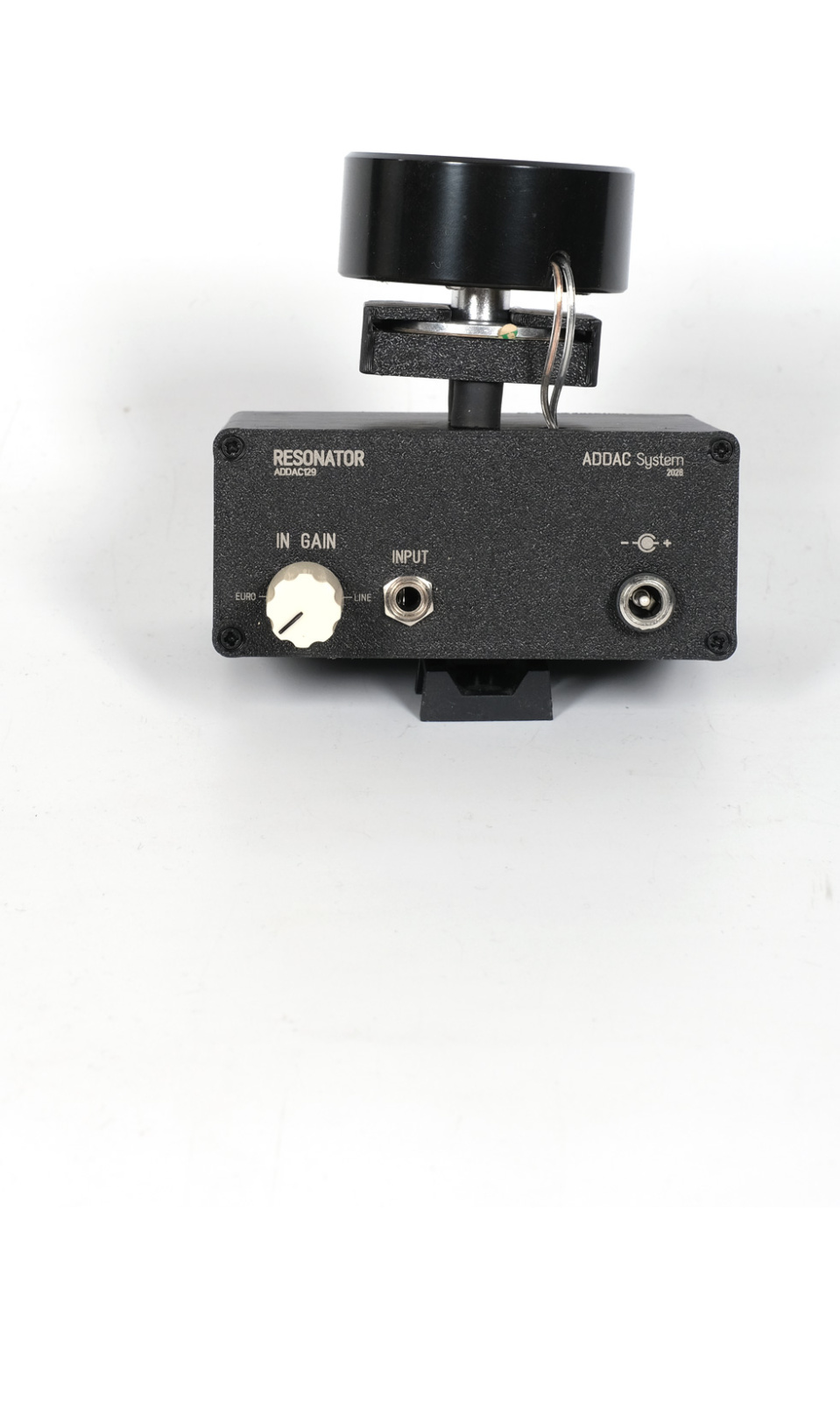

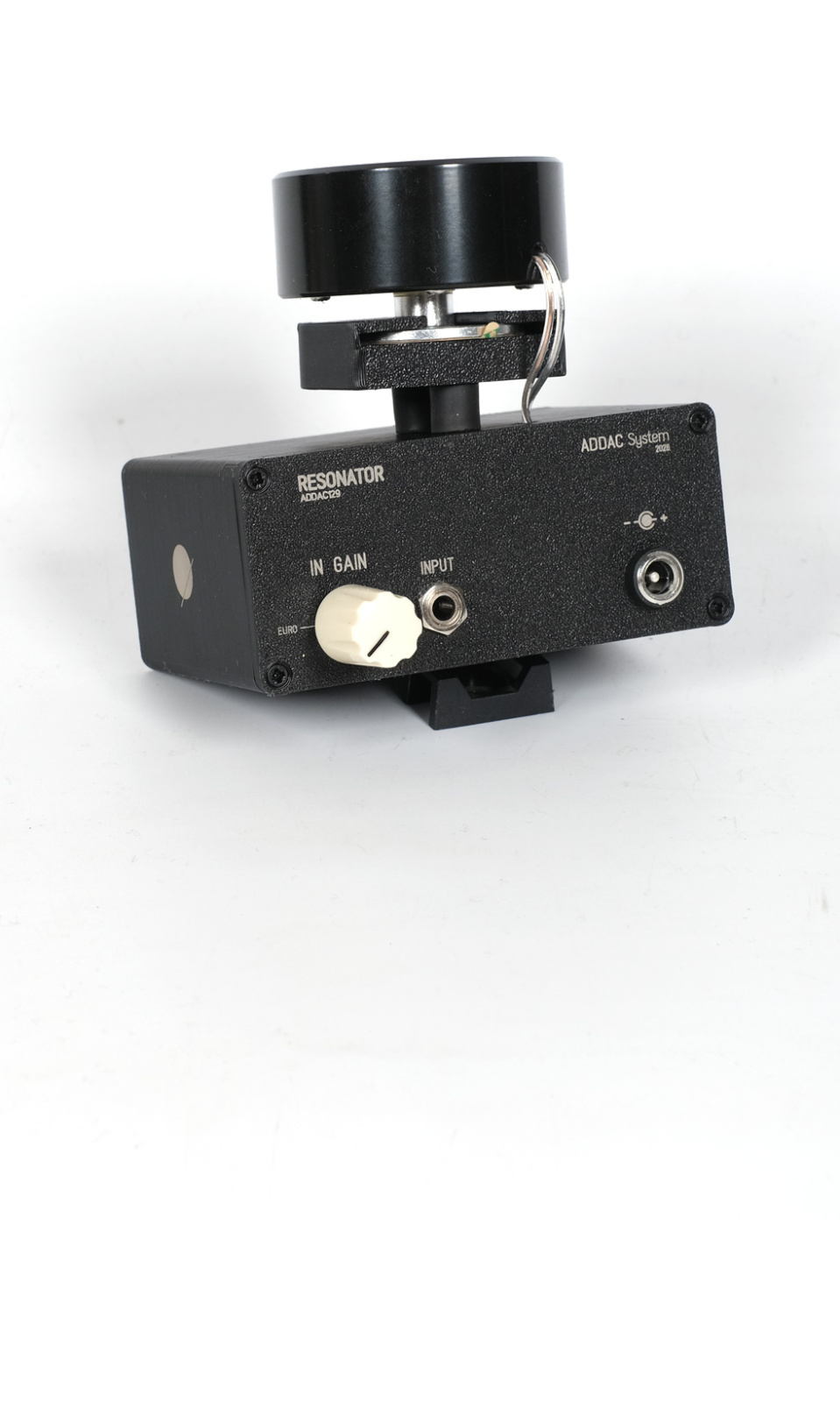

The volume knob attenuates the incoming audio. Always be mindful of the level used, gain staging is crucial and loud doesn't always translates to better output, as a rule of thumb is typically better practice to lower the input volume and raising the pickup gain.

The input can be fed by the ADDAC121/122 pickup output creating a feedback system, it can be fed external audio which turns the system into an audio processor or a mix of both using external mixing.

The effect generated will always have the natural decay of the strings which can somewhat resemble a spring reverb with the upside that in this system there's no background noise.

The strings tuning will greatly influence the overall tone and harmonics that will resonate with the incoming audio. Short bursts of audio can decay into dense harmonics clusters, Drones will excite complex reverb-like harmonics as they are "filtered" by the strings tuning.

Users can manually mute individual strings allowing them to resonate at will.

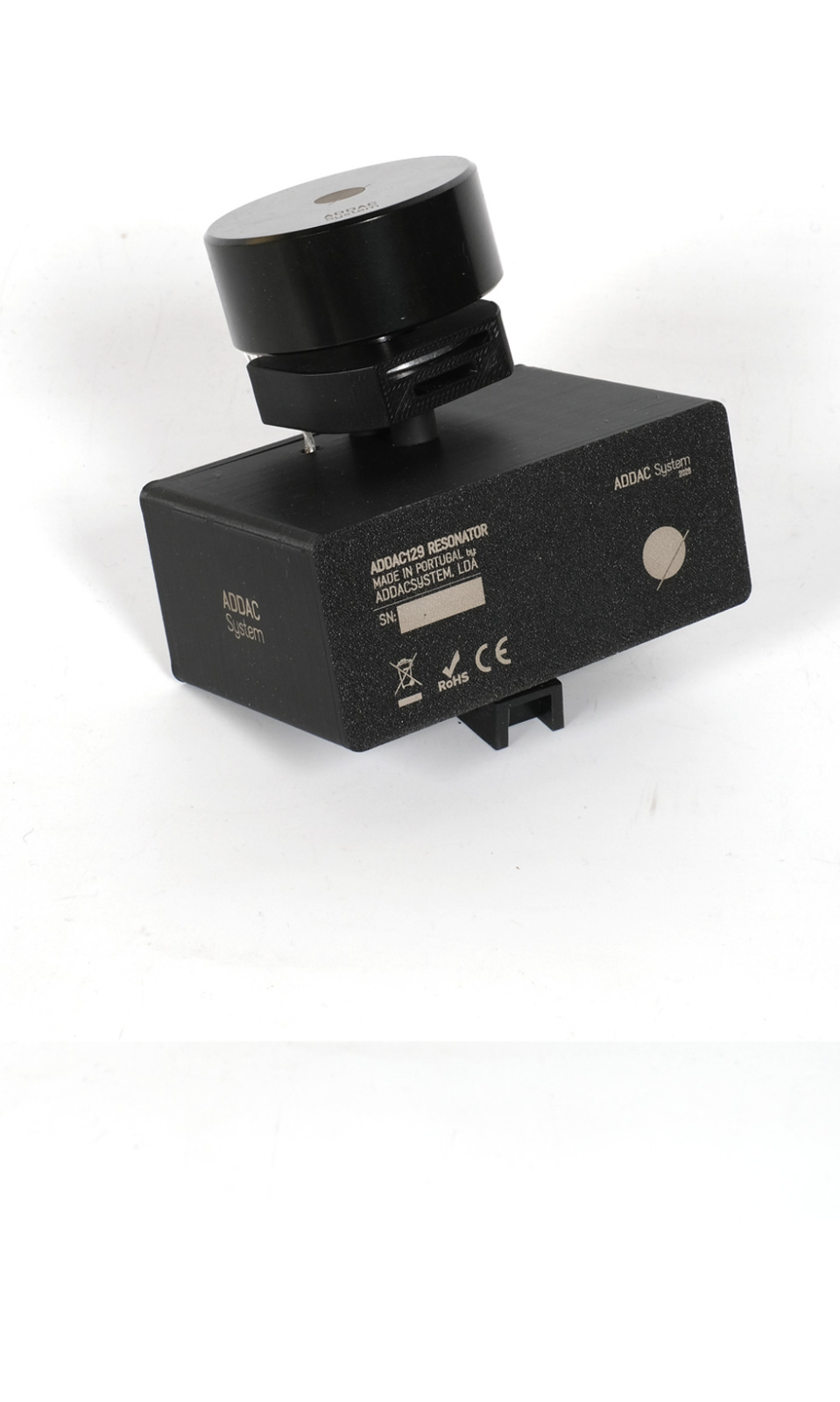

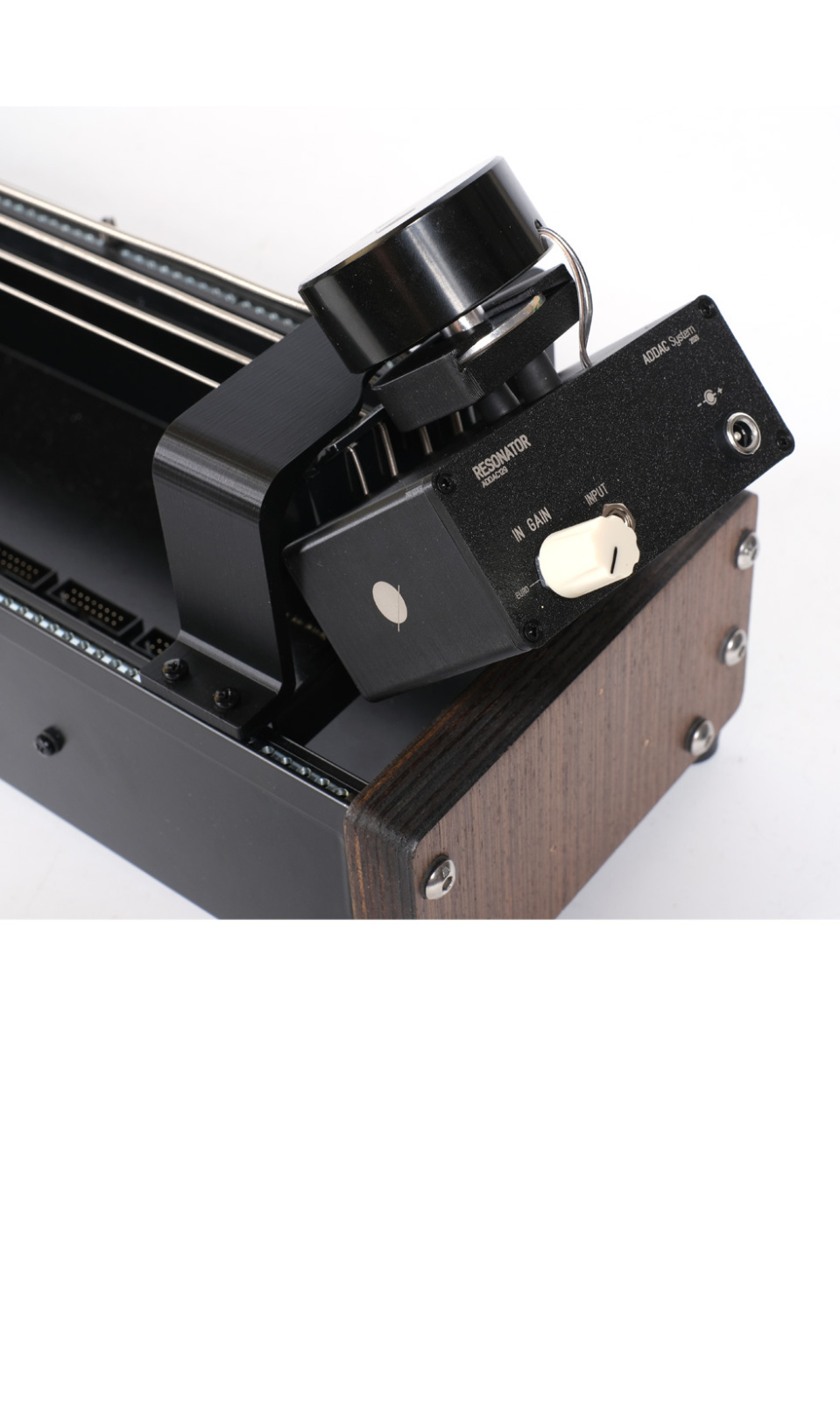

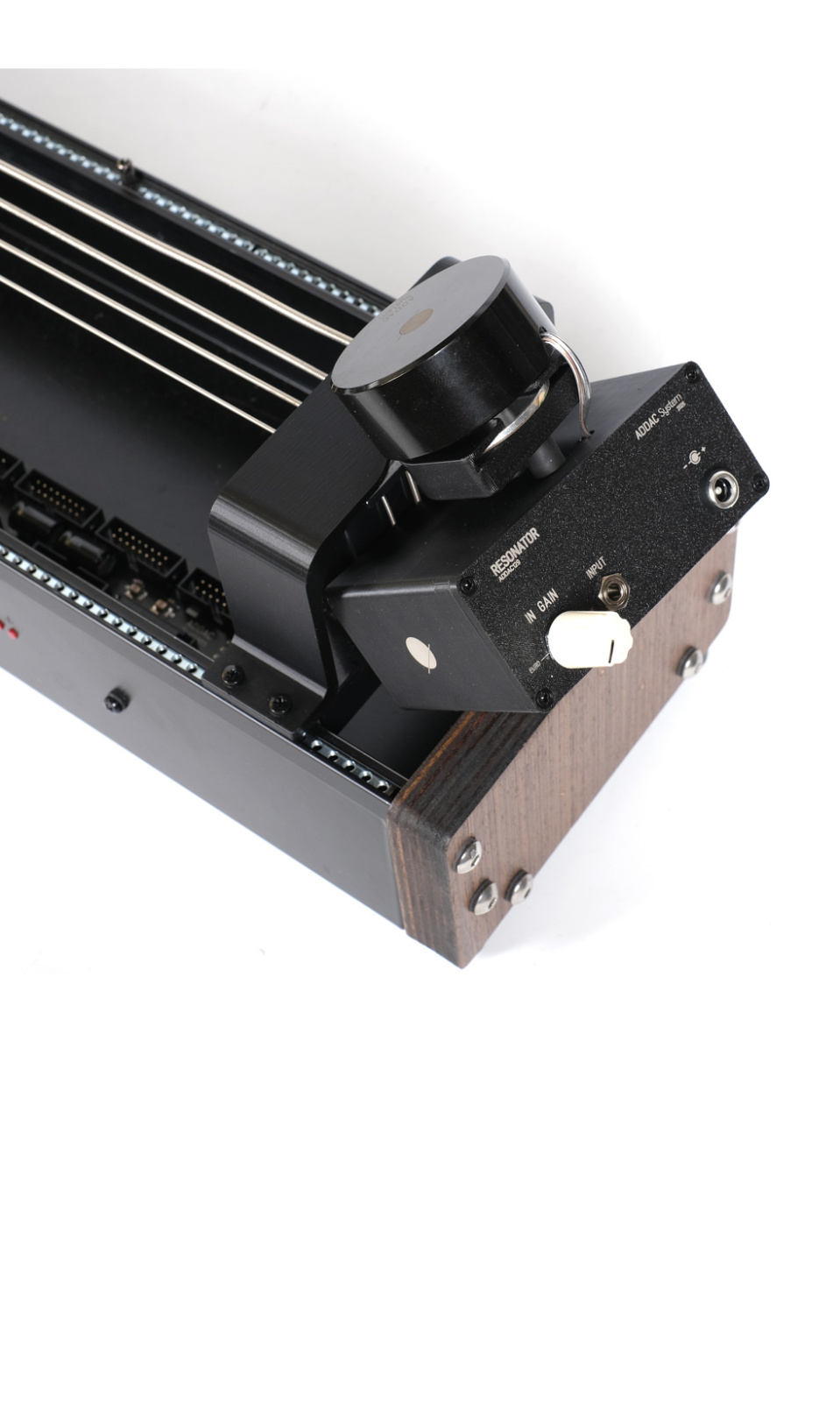

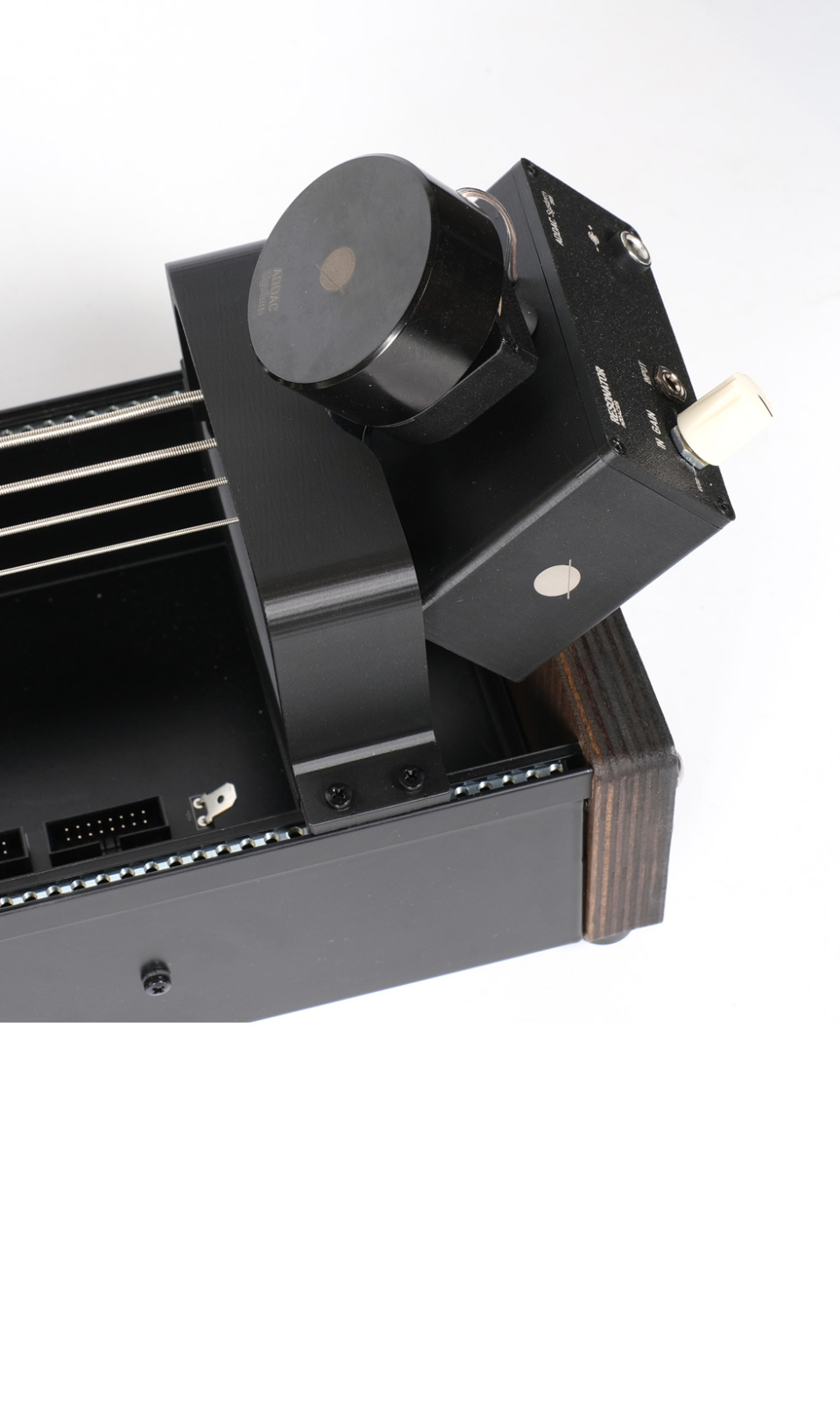

The Speaker is mounted to a coupler that also connects to the amplifier box using vibration dampeners keeping it isolated from the speaker. The coupler tightly slides into the headstock end lever making it easy to install or remove. This standalone solution takes no rack space.

An external power supply is provided.

Tech Specs:
0HP
External Power Supply

Product Safety Information

Eurorack Module

Important Safety Information
This Eurorack module is designed for use within standard Eurorack synthesizer systems and is intended for adult users familiar with modular synthesis and electronic equipment.

Please read this safety guide before installation or use.

General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could pose a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.

Installation and Use
• Mounting: Secure the module properly in the Eurorack case using the provided screws.
• Power Connection: Verify the polarity of the power cable before connecting to avoid damage to the module or power supply. Use only the included or manufacturer-recommended power cable.
• Operational Use: Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Maintenance and Handling
• Inspection: Regularly check for loose connections or signs of wear.
• Cleaning: Disconnect the module from power before cleaning. Use a dry or lightly damp cloth; avoid using solvents or water directly on the module.
• Repairs: Do not attempt to repair or modify the module yourself. Contact the manufacturer for support.

Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.

Liability Disclaimer
• The manufacturer is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.

Contact Information

For further assistance, contact our support team at:
Addacsystem, Lda.
addac[at]addacsystem[dot]com
