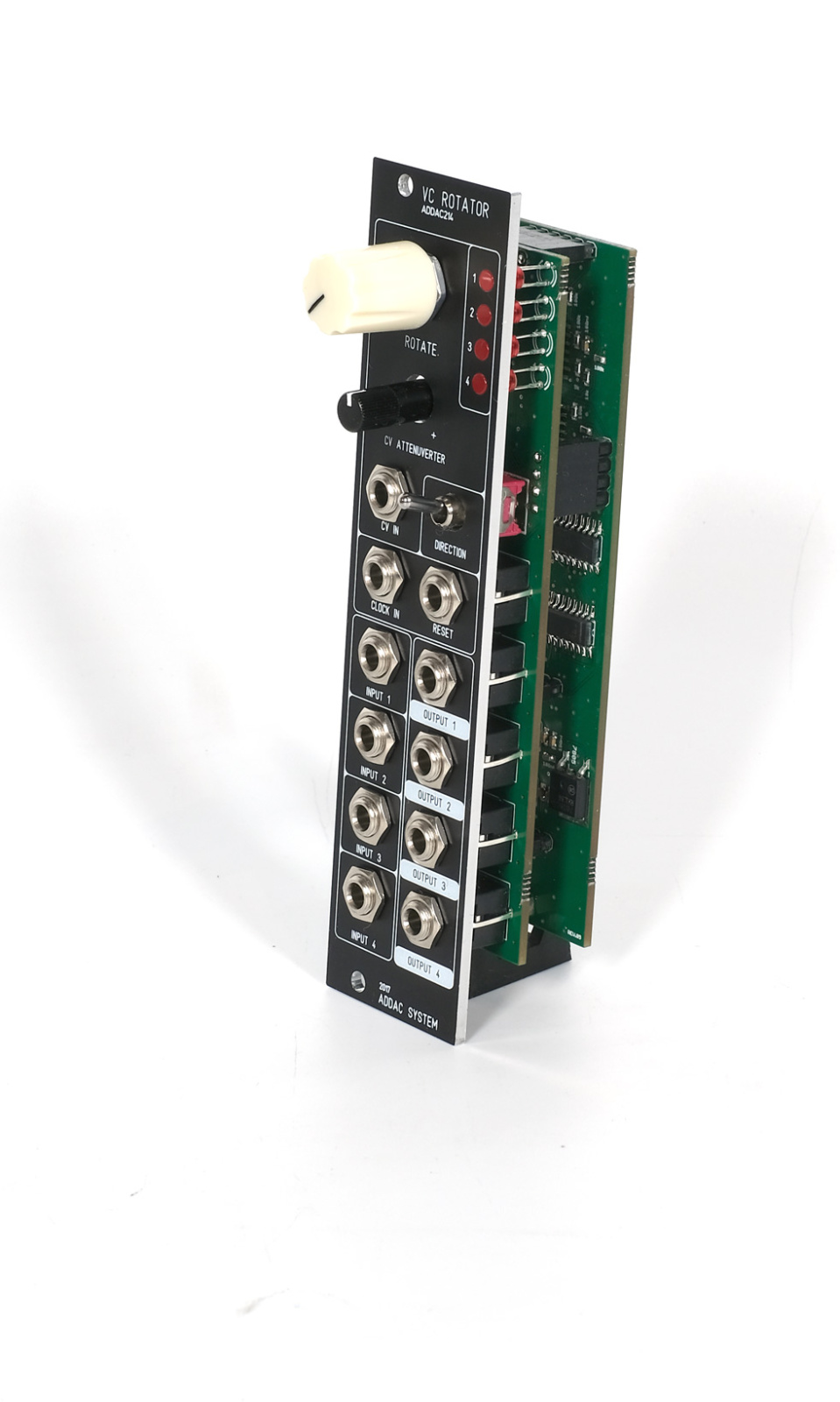

This is our VC Rotator, a stepped routing module for any type of signal (audio, cv, gate, trigger...)
Similar to a VC switcher but in this case there's the same number of inputs than outputs so, instead of 4 to 1 or 1 to 4, this module is always 4 to 4 but it can be patched for 2 to 2 and 3 to 3 step actions.
All four inputs get routed to the four outputs depending on the CV and Clock controls and are divided into 4 routing steps:
1. routes all inputs to the same number output: 1:1, 2:2, 3:3, 4:4
2. routes all inputs to an offset of 1: 2:1, 3:2, 4:3, 1:4
3. routes all inputs to an offset of 2: 3:1, 4:2, 1:3, 2:4
4. routes all inputs to an offset of 3: 4:1, 1:2, 2:3, 3:4
Direction determines if the clock input goes forward or backwards.
Going forward it can be set to 2-3 or 4 steps using the Rotate knob offset, going backwards always sync to 4 steps even if offseted by the Rotate knob.
For 2 & 3 step action input 1 is normalled to input 3 and input 2 is normalled to input 4.
Reset resets the internal clock to the first step.
Pendulum, external sequencing or any complex CV actions can be achieved using the CV input and dedicated attenuverter.
4 leds monitor which input is routed to output 1.
CV Rotate with Attenuverter
Clock and Reset Inputs
4 Monitor Leds
This module is also available as a full DIY kit.
Note: All specifications and features are subject to change without previous notice.
In case you're wondering: Sure! We can get you a custom coloured front panel for the ADDAC214.
It has an additional cost and takes 4 to 6 weeks to be ready.
At the moment the ADDAC214 standard panel colour is Black.
A custom colour panel can be done in either Red, Green, Blue, White, Silver Gray, Yellowed Silver, and Dark or Light Bronze.
Print colour varies between Black, White, or Red, Yellow, Blue and Green. We recommend lighter-tone print for darker panels, and vice-versa.
Please note: we don’t stock custom coloured panels. For every custom order we need to make a single panel order from our panel provider. This explains the panel price and lead time.
This module is also available as a DIY Kit from Thonk, Exploding Shed, and Synthcube.
Here's the detailed step by step Assembly Guide Pdf:
