Description
Here's the second module of our 700's Heritage Series.

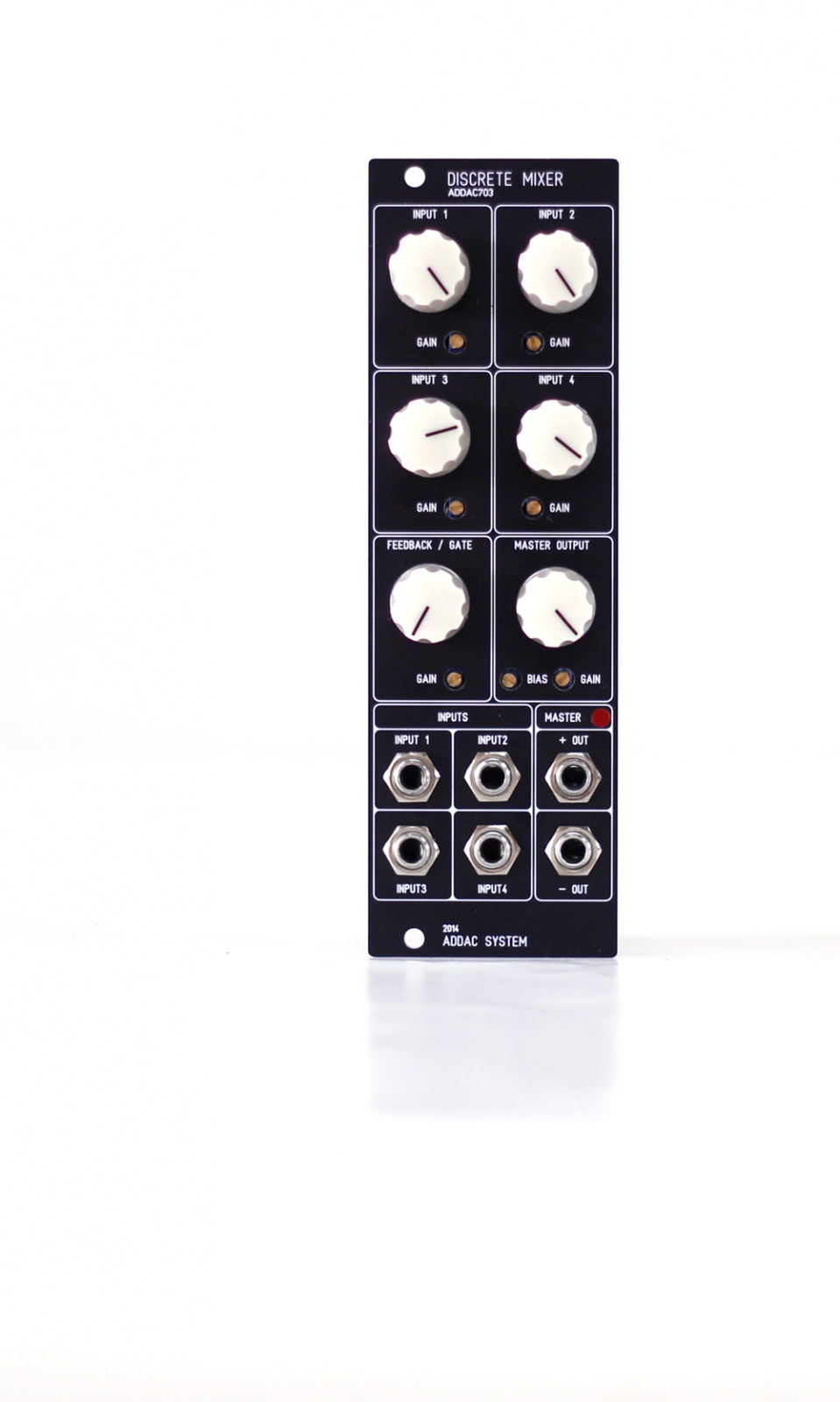

Inspired by Moog CP3 mixer, this is a totally discrete analog mixer and it's not, by any means, your standard breakfast mixer, although it can behave like one.
This is a wolf in sheep's clothing. Despite its harmless looks there's a dark snarly soul behind that panel that wants to take your sounds into a realm of gritty, gnarly growls.
Features:
.4 Independent channels with input jack and volume knob
.1 Feedback/gate knob
.Master output volume knob
.6 Front panel trimmers allows user to adjust the Input resistor trimmer for each channel, feedback and master output
.1 Front panel trimmer allows to adjust the mix Bias
Note: All specifications and features are subject to change without previous notice.
Specs
Mechanical:
. Format: Eurorack
. Width: 8 HP
. Depth: 3 cm
Electrical:
. Max current: 60mA.
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector.
This module is also available as a full DIY kit.
Note: All specifications and features are subject to change without previous notice.
Media
HD Video, Fullscreen Recommended!
Custom Panel
In case you're wondering: Sure! We can get you a custom coloured front panel for the ADDAC703.
It has an additional cost and takes 4 to 6 weeks to be ready.
At the moment the ADDAC703 standard panel colour is Black.
A custom colour panel can be done in either Red, Green, Blue, White, Silver Gray, Yellowed Silver, and Dark or Light Bronze.
Print colour varies between Black, White, or Red, Blue and Green. We recommend lighter-tone print for darker panels, and vice-versa.
Please note: we don’t stock custom coloured panels. For every custom order we need to make a single panel order from our panel provider. This explains the panel price and lead time.
DIY Kit
This module is also available as a DIY Kit.
It costs 87.12€ (Excl. VAT).
You can also get it from distributors listed on our Order page.
Here's the detailed step by step Assembly Guide Pdf:
http://media.addacsystem.com/diy_guides/ADDAC703_DIYkit.pdf
