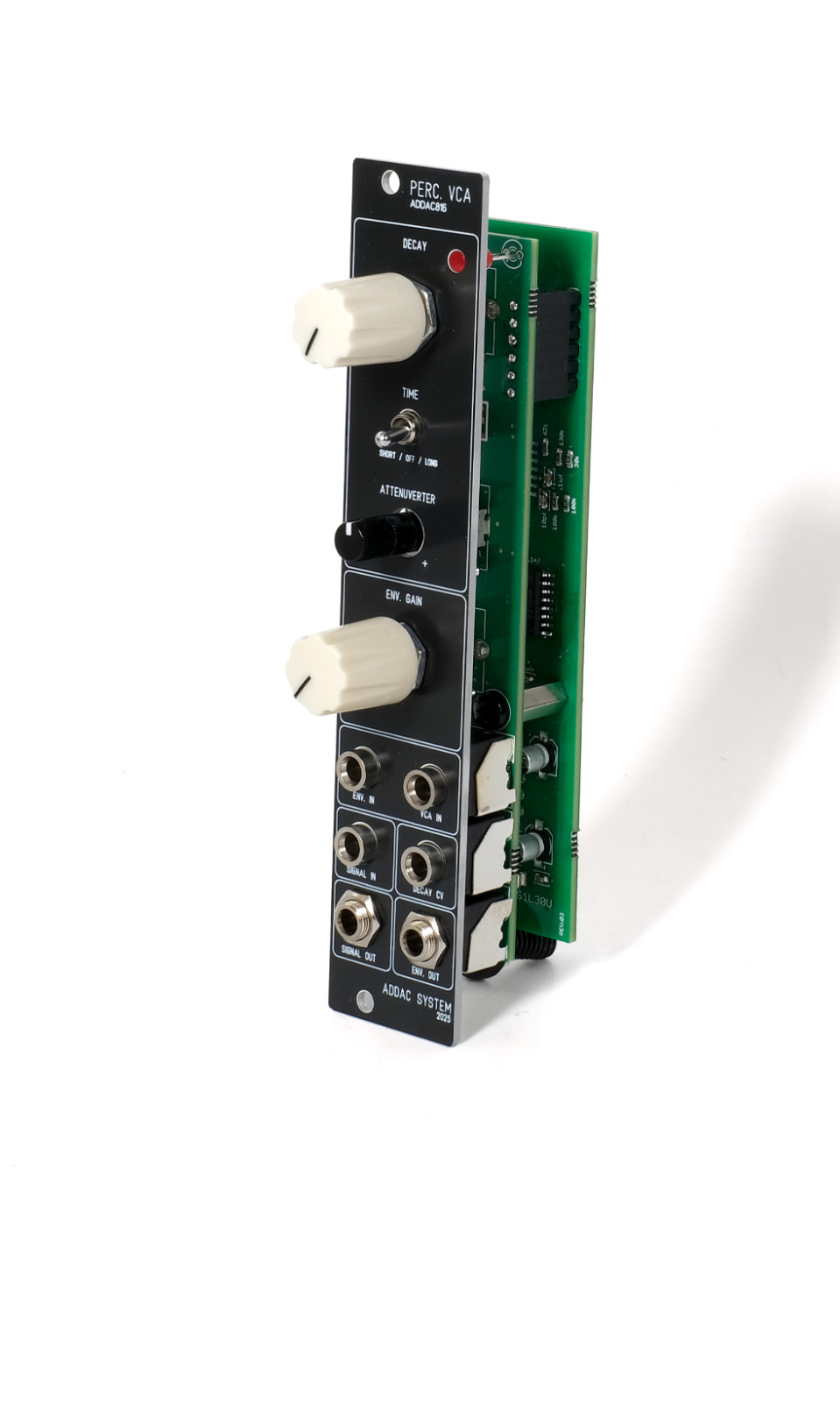

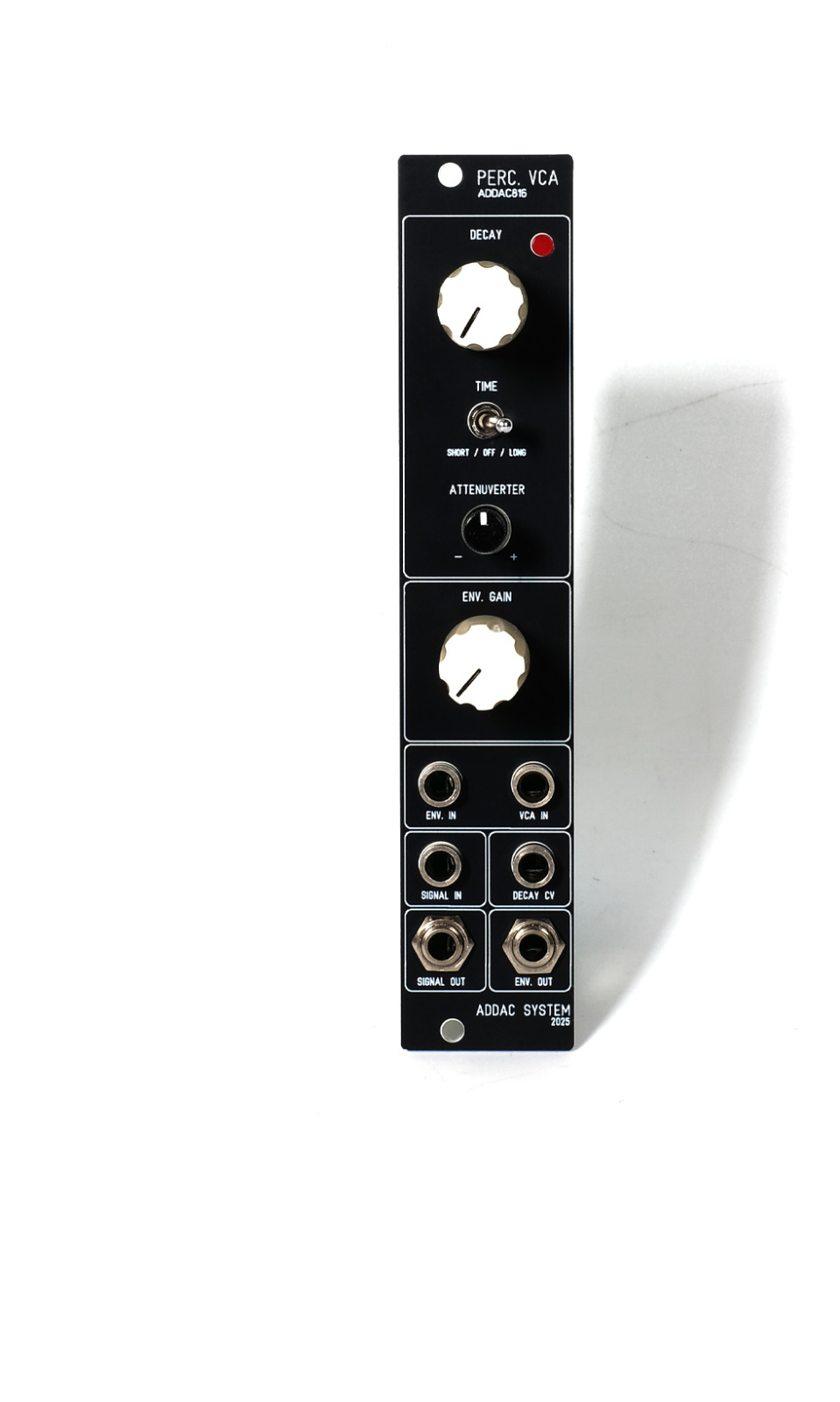

ADDAC816

While deep in its soul there’s a standard VCA with exponential response that can be used as such, in its heart pulses an AD envelope with a sharp attack and a variable decay internally connected to the VCA control input. When it opens its mouth it can whisper in your ear but don’t let this soft demeanor fool you, if driven to the extreme it will show its teeth and gnarly bite and chew on your cochleas with all its might.

The AD envelope has a fixed short Attack, just enough to avoid the typical “click” that happens when using a Gate signal to control a VCA, while the envelope Decay can be controlled via its knob or voltage controlled using the CV input and attenuverter.

We named it Percussion VCA as most percussion intruments have sharp attacks with variable decays just as its AD Envelope however it can be used for any purpose where a VCA is needed including for CV signals due to it’s DC coupled signal path.

Furthermore it also allows to be driven from a simple Gate signal while controlling its decay. This way it’s easy to plug a noise source, vco or any audio and turn that source into a percussive element.

Product Safety Information

Eurorack Module

Important Safety Information
This Eurorack module is designed for use within standard Eurorack synthesizer systems and is intended for adult users familiar with modular synthesis and electronic equipment.

Please read this safety guide before installation or use.

General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could pose a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.

Installation and Use
• Mounting: Secure the module properly in the Eurorack case using the provided screws.
• Power Connection: Verify the polarity of the power cable before connecting to avoid damage to the module or power supply. Use only the included or manufacturer-recommended power cable.
• Operational Use: Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Maintenance and Handling
• Inspection: Regularly check for loose connections or signs of wear.
• Cleaning: Disconnect the module from power before cleaning. Use a dry or lightly damp cloth; avoid using solvents or water directly on the module.
• Repairs: Do not attempt to repair or modify the module yourself. Contact the manufacturer for support.

Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.

Liability Disclaimer
• The manufacturer is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
